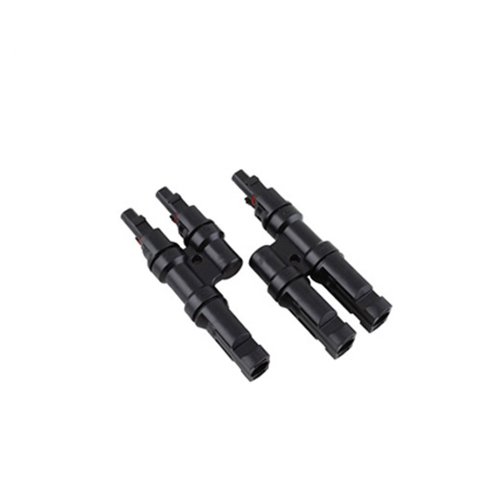

RENOGY Branch Connectors Solar MC4 Connectors Y connector in Pair MMF+FFM

Product ID: B00BCWRB48 Condition: New

Available in other options.

View variations

Sold Out

Product Description

RENOGY Branch Connectors Solar MC4 Connectors Y connector in Pair MMF+FFM

Compatible with MC4 connectors Also known as MC4 T connectors
CE and TUV certified Hard plastic;Protection Class: Class II Temperature Range: -40C~+90 C
One FFM; one MMF Withstanding voltage: 1000V DC(TUV), 600V(UL)
Contact Material: Copper, silver plated Flame Class: UL94-V0 or UL94-5VA
Protection Degree: IP67, mated Unmating Force: 200 Newton Insulation Material: PC/PA

Description
Renogy MC4 Branch Connectors are used for parallel connection between solar panels. Sold as a pair, these "Y-Connectors" will maintain the voltage of your panel configuration to match your battery size.
These connectors are solely compatible with MC4 connectors and come with one male (MMF) and one female (FFM) connection.

Specifications
Withstanding voltage: 1000V DC(TUV), 600V(UL)
Contact Resistance: 1m
Protection Class: Class II
Temperature: -40Â°F to +194Â°F
Protection Degree: IP67, mated
Unmating Force:147.51FtÂ·lb
Insulation Material: PC/PA
Contact Material: Copper, silver plated
Flame Class: UL94-V0 or UL94-5VA

Warranty Information
1-year material warranty
