Replacement Main Gear & Shaft for Fleck 5600 Control Valve

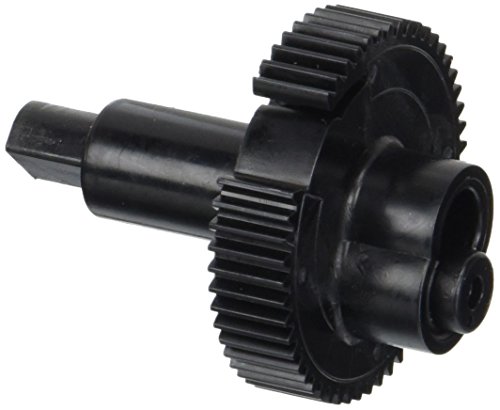

Replacement Main Gear & Shaft for Fleck 5600 Control Valve (Part# 13170)

Main gear and shaft that moves other gears and moves piston up and down. The gear can wear down and will not move the piston or timer. This gear will work with water softener AND filter valves. This is genuine Fleck part# 13170.

Replacement Instructions
1) First, remove "power head" from the valve body. Three screws (one in the Main Gear, center of Main Piston, and the TWO on either side of Main Piston ), slide forward slightly and then up.
2) On the back of power head, remove Brine Cam Gear.
3) On the front of power head, remove label on the center of the control knob to expose flat head screw underneath. HOLD THE MAIN GEAR in place ( don't let it "fall out" the back ) while you remove the screw in the center of the control knob on the front.
4) Once the Screw is out, TURN the power head face DOWN, and slowly LIFT the Main Gear Shaft UP and Out. NOTE: Under the Main Gear you will find TWO small Ball Bearings sitting on TWO small springs. IF you have the New Main Gear Shaft in hand, now would be the best time to slide it into the power head. HOLD the new Main Gear from behind, and put the front knob ( and actuator gear or arm, 24 hour wheel, etc ) back in place ( everything only "fits" the correct way ). Screw the knob to the Main Gear.

**ALIGNMENT**
5) Only "trick" to doing this is the replacement of the Brine Cam Gear. The "hump" on the Brine Cam Gear must be aligned with the "gap" in the Main Gear. This alignment occurs 1/2 turn ( 180 degrees ) from the IN SERV position ( or the middle of the Brine Rinse Cycle ). * If you do it correctly, you will be able to turn the front knob and "run" the power head through ALL the cycles with out it getting STUCK in the middle of the Brine Rinse cycle.
6 ) Put the Power Head back onto the Valve Body. Replace the Three screws. Remember to set the Time of Day on the Front
Country USA
Brand AFWFilters
Manufacturer Fleck
Binding Tools & Home Improvement
ItemPartNumber FP-13170
Model FP-13170
Color Black
UnitCount 1
UPCs 783583352826
EANs 0783583352826
ReleaseDate 0000-00-00

Country	USA
Brand	AFWFilters
Manufacturer	Fleck
Binding	Tools & Home Improvement
ItemPartNumber	FP-13170
Model	FP-13170
Color	Black
UnitCount	1
UPCs	783583352826
EANs	0783583352826
ReleaseDate	0000-00-00
