Rochester Gauges 8680 Series Flat Dial Vertical Fuel or Oil

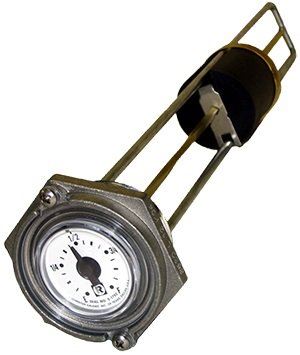

Rochester Gauges 8680 Series Flat Dial Vertical Fuel or Oil Level Gauge 15.5
- Zinc and Zinc Coated Steel Construction
The zinc and steel construction of the 8600 Series spiral gauge makes it suitable for use in hydraulic, lubricating, or fuel oil tanks. They are also suitable for gasoline and diesel fuel tank levels in a variety of stationary equipment, construction and maintenance vehicles such as road sweepers and water spray trucks. The gauge incorporates a strong nickel-plated Alnico magnet. The magnet is capable of driving a standard (Included) or TwinSiteÂ® sender (also available) that sends an electrical signal to a remote receiver (gauge) and provides a direct, fractional reading. The gauges have a 1 1/2" MNPT tank connection (2" adapter available), and are suitable for tank pressures up to 25 PSIG They are designed for top mounting in tanks up to 36" [914 mm] deep General Specifications* Accuracy depends upon proper gauge sizing. Direct read dials Â±8%, TwinSite dials Â±12%. Temperature Standard operating range is -40Â°F to 158Â°F, -40Â°C to 70Â°C. Shock and Vibration: Shorter models are suitable for off-road applications. Approval: Available UL listed for flammable liquids. Materials of Construction* Head: Die-cast Zinc, Support Rod: Zinc coated Steel, Center shaft: Brass. Tie Plate, Guide, & Bearing Pin: Stainless steel. Float Nitrile: rubber Drive Magnet: Plated alnico. Standard Dial: Polycarbonate, hermetically sealed. Length measurement is from bottom of threads to the bottom of float guide frame.
Country USA
Brand Rochester Gauges
Manufacturer Rochester Gauges
Binding Apparel
ItemPartNumber 8680-01170
ReleaseDate 0000-00-00

Country	USA
Brand	Rochester Gauges
Manufacturer	Rochester Gauges
Binding	Apparel
ItemPartNumber	8680-01170
ReleaseDate	0000-00-00

Rochester Gauges 8680 Series Flat Dial Vertical Fuel or Oil Level Gauge 15.5
