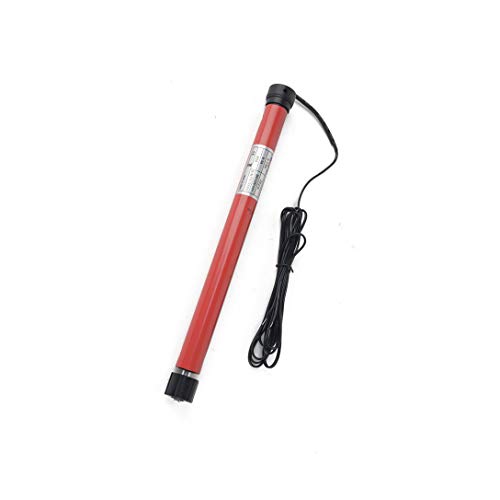

Rollerhouse DC12V 500mA 2 Wires Hard Wired Switch Controlled Electric Roller Blind/Shade Motors for 21mm/28mm RV Roller Shade, Convert Existing Blinds into Automated Blinds
Product Description
Rollerhouse DC12V 500mA 2 Wires Hard Wired Switch Controlled Electric Roller Blind/Shade Motors for 21mm/28mm RV Roller Shade, Convert Existing Blinds into Automated Blinds
- 12 volt shade motor: non-remote version means hard-wired switches controls,working for 1-1/8"(28mm)Shade tube,for Small roller blinds
- 12V DC motors require a double throw switch - (up - off -down),Switching individual shades is accomplished by a 3 position DC switch, to drive a DC motor forwards and backwards
- Easy-to-use – switch or controller, to run shades up and down and have two electrical wires : positive and negative
- Hard wired window shades offer heavier duty DC motors that do not require charging or re-charging batteries, blackout shades that weigh 4.2 lbs which is under the 4.4 lbs motor limit
- Can be work with home automation solutions via smart devices as well when used with a network hub, eg. RF control or hard-wired switched or Connect with Qubinos Shutter DC module as a Z-wave receiver with ES motors.
Please note
1. Hardwired systems: Typically seen in new home buildings, hardwired systems require each switch, sensor or device to be centralised to one location through wiring
it is advised that a professional design and install hardwired systems. Examples of hardwired home automation systems include C-Bus or simple switches
2.This kind of motorized window treatment is mostly supplied with 12V DC, It has a power cord that is plugged into a socket outlet. Wired slave motors are compatible with C-bus home automation or simple switches
3.This kit requires you to buy the roller shade rod and fabric, DC power cord, or connect your own automation system
4. Program Instruction inside the gift box, please check carefully when open it and prefer to send any message if there is problem
Specifications
-Motor length: 242.5cm
-No load speed: 37rpm
-Current consumption at nominal torque: 500mA
-Nominal supply voltage: 12V
-Minimum supply voltage: 9.5V
-Maximum running time: NO Limit
-Temp Working Range: 32°F to 140°F (0°C to 60°C)
-Supply cable type(m㎡) 2x0.20
-Supply cable length with 2 meter
Package Included
1 x 16mm Wired switch motor
1x Drive Wheel and crown for 0.827 inch/21mm round Aluminum tube
1x End cap and Bracket
1x Program Instruction, to show you how to program the limit setting
Buyer requirements
1) What type of shade or window covering am I going to use?
Roller Shade, Cellular, Pleated, Roman, Drapery etc
2)How are motorized window coverings powered?
There are 3 types of motors: wirefree, plug-in low voltage, and plug-in high voltage
3) How would I like to control the window covering?
IR-Remote, RF-Remote, Wall Switch, Touch Pad, IPad, Cell Phone, Automation etc
