Rotating Platform TBVECHI HT03RA100 Precision Electric

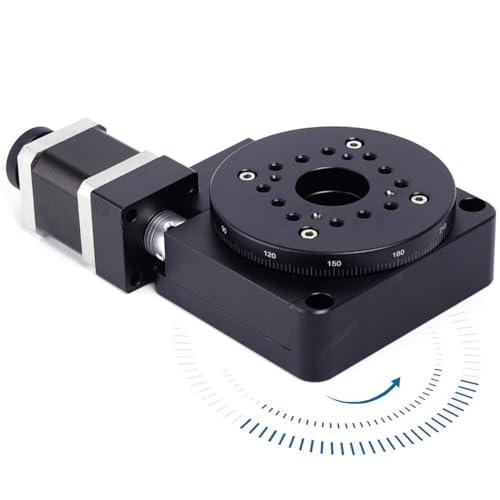

Rotating Platform TBVECHI HT03RA100 Precision Electric Rotating Machine Optical Rotating Platform Motorized Rotation Stage 100mm Bearing Scale (HT03RA100)
- HT03RA100 Rotating Platform: HT03RA100 Precision Electric Rotating Machine Optical Rotating Platform Motorized Rotation Stage 100mm Bearing Scale. Fine grinding worm drive, comfortable movement, backwards can be neglected, the motor is connected with the worm through a high-quality elastic coupling, synchronous drive without noise. Dash the outside of the platform to easily read the scale.
- High Precision: High-precision electric rotating platform, new construction, new technology; key indicators have passed strict inspection. This series of products are used for laser precision machining, 3D scanning measurement system, etc., using worm gear, friction resistant material, high precision of rotation precision, outer ring With scale, interface.
- High Performance: Worm gear transmission mode, using special process, high wear resistance, reliable and reliable, high precision shafting makes high rotation precision, large bearing capacity and stable movement. Widely used in industrial automation and scientific experiments, the scale ring is installed on the outer ring of the rotary table to facilitate initial positioning and reading. The electronically controlled rotary table can be used flat, vertically, and inverted.
- Limit & Zero function : The limit function and zero function can be added. The stage can be used vertically or assembled with other stages. The prototype stepper motor 42 stepping motor (1.8°). The servo motor can be replaced according to requirements. The steel cup has high precision, large carrying capacity and long service life. (Note: The turntable does not support optical angle feedback.)
- Easy Connection to Motion Controllers: A timing platform with stepper motor and RS232 interface for easy connection to motion controllers. Standard stepper motor and DB9 interface, choose controller flexibility, so we can provide a fully customized motion system.
Country USA
Brand TBVECHI
Manufacturer TBVECHI
Binding Misc.
ItemPartNumber ASG-6G
Model HT03RA100
Size 11 Inches & Above
UnitCount 1
UPCs 796862499419
EANs 0796862499419
ReleaseDate 0000-00-00

Country	USA
Brand	TBVECHI
Manufacturer	TBVECHI
Binding	Misc.
ItemPartNumber	ASG-6G
Model	HT03RA100
Size	11 Inches & Above
UnitCount	1
UPCs	796862499419
EANs	0796862499419
ReleaseDate	0000-00-00

Rotating Platform TBVECHI HT03RA100 Precision Electric Rotating Machine Optical Rotating Platform Motorized Rotation Stage 100mm Bearing Scale (HT03RA100)
