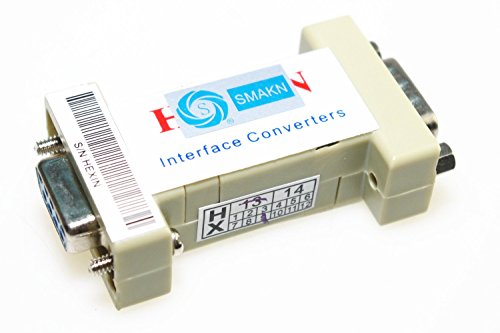

SMAKN® 5-Wires Rs-232 Optical Isolator

SMAKN® 5-Wires Rs-232 Optical Isolator
- Port: Compliant to RS232 EIA and CCITT V.24
- Transmission modes: Asynchronous, Dual duplexes Full transparent
- Isolated voltage: 2500 in constancy, 7500V in surge.
- Baud rate: 0 ~57.6kps
- Pawer source: Self powered fiom TXD, RTS, DTR
1. Description ofProduct
Rs32 Optical Isolator protects RS232 devices from the damage by ground loop surging or shock or static electricity through optical technology.
Among RS23 2 communication system, static electricity, shock, surge, or hot plug may cause darnage to RS232 devices via wiring system. For exampled if the device A and device B are wired by 5232 connection, when the electricity voltage Difference (any reason caused) between A and B is Beyond 80V, the communication will function Unusually, and the RS232 port would be easily damaged by the voltage difference.
RS232 Optical Isolator completes the conversion,from electronic signal to optical, fiom optical to electronic signal. It isolates the damage between the RS232 devices, and improves the reliability of RS232 communication.
By RS232 Optical Isolator, the 7500V elccLricity surge and 2500V constant electricity difference can be isolated it wouldinitely hcip to protect the RS232 communication system.

2. Feature and specification
1) Port: Compliant to RS232 EIA and CCITT V.24
2) Transmission modes: Asynchronous, Dual duplexes Full transparent
3) Isolated voltage: 2500 in constancy, 7500V in surge.
4) Baud rate: 0 ~57.6kps
5)Pawer source: Self powered fiom TXD, RTS, DTR
6)Working environment:0 ~500 temperature ; 0%~95% humidity
3. Usage
1) RS232 point-to-point tciccommunication
2) 2) Unix based multi-users system
3) Multiple end terminals and host
4) RS-232 remote control system
5) Remote billing machine
6) Satellite receiving system
7) Remote paging system
8) Remote control system for MODEM and router
