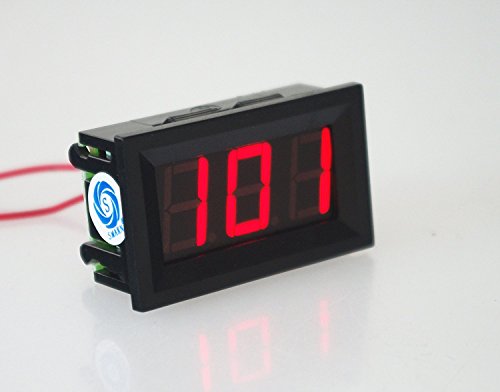

SMAKN RED 2 -Wire 0.56" DVM Digital Voltmeter LED Panel Volt Ac 60-500v 110/220v Voltage Tester Meter
Product Description
SMAKN RED 2 -Wire 0.56" DVM Digital Voltmeter LED Panel Volt Ac 60-500v 110/220v Voltage Tester Meter
- Product Name : Digital Voltmeter w Fine Adjustable;Model : V27A;Display : 3 Digits RED LED
- Voltage Range : AC 60-500V;Total Size : 48 x 29x 28mm/ 1.9" x 1.1" x 1.1"(L*W*T)
- Mounting Size : 45 x 27mm/1.8" x 1.1"(L*W);Cable Length : 20cm / 7.9"
- Material : Plastic, PCB, Iron;Main Color : Black
- Weight : 26g;Package Content : 1 x Digital Voltmeter w Fine Adjustable
Dimensions: 48 x 29 x 27 mm
Cutting Size: 46 x 27mm
Measuring range: AC 60-500V
Minimum input: AC 60V (below 60V measurement is inaccurate or no display)
Maximum input: AC 500V ( if input voltage greater than 500VAC, the voltmeter would burn.)
Permissible error: 1% (+ / - 1 digit)
Display: three 0.56 "LED digital tube
Display Color: RED
Refresh rate: About 500m/S
Current consumption: Less than 20mA, generally 5-15mA
Operating temperature: -10 ° c ~ 65 ° c
Package Includes:
1x Digital AC Voltmeter
Technical Specifications
