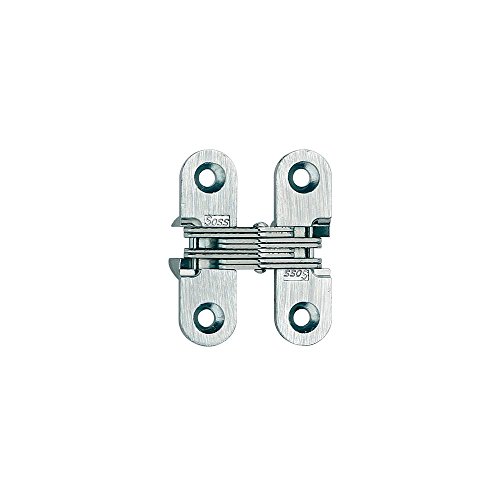

SOSS Mortise Mount Invisible Hinges with 4 Holes, Zinc, Satin Chrome Finish, 1-3/4" Leaf Height, 1/2" Leaf Width, 23/32" Leaf Thickness, #6 x 1 Screw Size (1 Pair)
Product Description
SOSS Mortise Mount Invisible Hinges with 4 Holes, Zinc, Satin Chrome Finish, 1-3/4" Leaf Height, 1/2" Leaf Width, 23/32" Leaf Thickness, #6 x 1 Screw Size (1 Pair)
- Fully mortised in door and frame so hinge cannot be seen from either side when closed
- Moving pivot point eliminates any external pinch point
- For 3/4" to 1" thick material
- Ideal for cabinet and small access doors
- No adjustment needed once installed
- Riveted steel hinge pin is non-removable
Soss invisible hinge model #203 is for use in wood or metal applications. This cabinet style hinge will provide superior apperance and durability. Our Hinges are found in many applications where flush fit, compact size and smooth operation are necessary features. Soss invisible hinges open a full 180 degree and are a single action hinge. Wood Screw Size: #6 x 1". Soft Wood Pilot Hole: No. 52. Hard Wood Pilot Hole: No. 44. Machine Screw Sizes: #6-40 x 1/2".
Technical Specifications
