STM32-QFP100 STM32 STM32F(F1 F2 F4) QFP100 LQFP100 0.5mm Pitch

STM32-QFP100 STM32 STM32F(F1 F2 F4) QFP100 LQFP100 0.5mm Pitch Program Programmer Programming JTAG SWD Port Yamaichi IC Test & Burn-in IC51-1004-809 Socket Board Adapter @XYG
- STM32-QFP100, Programmer Adapter

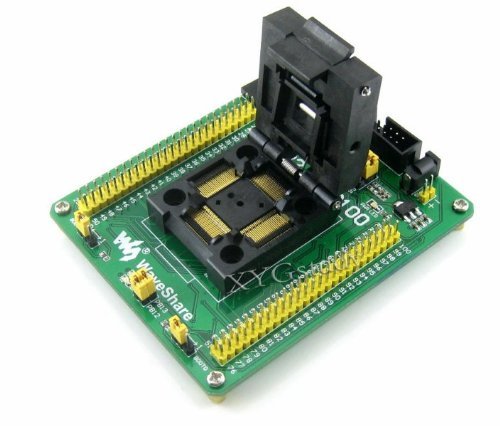

- Yamaichi IC Test & Burn-in Socket with a simple board, specifically designed for STM32 microcontroller in QFP100(0.5mm pitch) package
- 20-pin JTAG/SWD port and/or 4-pin USART1 interface for programming/testing
Yamaichi IC Test & Burn-in Socket with a simple board, specifically designed for STM32 microcontroller in QFP100(0.5mm pitch) package

Features
20-pin JTAG/SWD port and/or 4-pin USART1 interface for programming/testing
External crystal can be connected via on board socket for system clock
Onboard 32.768K crystal oscillator
Two LED indicators for testing, which are connected to the I/O pins via jumpers
All the MCU pins are accessible on expansion connectors
* pin header pitch: 2.54mm(100mil)

Supported Devices
STM32 microcontroller in QFP100(0.5mm pitch) package with compatible pinouts:
STM32L1xxV series (STM32L151VB, STM32L152VB, etc.)
STM32F1xxV series (STM32F103VE, STM32F100VE, etc.)
STM32F2xxV series (STM32F207VC, STM32F215VC, etc.)
STM32F3xxV series (STM32F303VC, STM32F373VB, etc.)
STM32F4xxV series (STM32F407VG, STM32F415VG, etc.)
Config the onboard "Device selection jumpers" according to the device to be programmed.

Package Contains
STM32-QFP100 Ã— 1
USB power cable Ã— 1
