SYSTEM SENSOR CO1224T 12/24 volt, 4-wire, system-monitored C02 carbon monoxide detector w/ RealTest Technology
Product Description

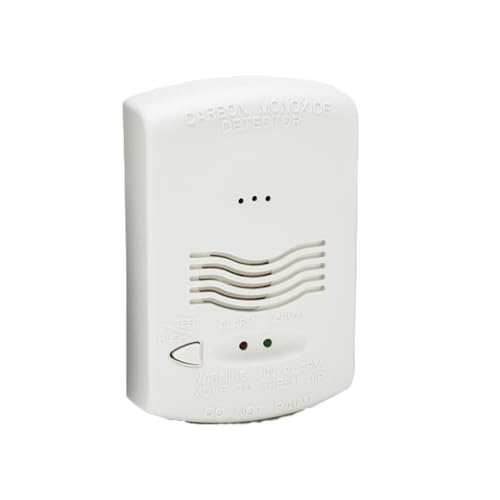

SYSTEM SENSOR CO1224T 12/24 volt, 4-wire, system-monitored C02 carbon monoxide detector w/ RealTest Technology
- The System Sensor CO1224T CO detector provides early warning of dangerous carbon monoxide levels by using electrochemical sensing technology to measure levels in the air.
- RealTest allows installers to test the detector with a short spray of CO gas.
- Full compliance with UL 2075, A six-year end-of-life timer
- A trouble relay requireby code, 12/24 VDC operation
- Wiring supervision with SEMS terminals
Carbon Monoxide Detector, Signaling Device, Finish White, Single Gang Box Mounting, Alarm Current 40mA, Peak Output 85 dBA, Height 6 In. , Length 6 In. , Width 6 In. , Ambient Temp. Limits 32 to 104 F, Alarm Aux. Contact @ 30VDC 0. 5 A, Humidity Range 22 to 90 % RH, Standby State 20 mA, Voltage 12/24 VDC, Standards UL, Includes Pendant Mount, For Use With Alarm Control Panels
Technical Specifications
