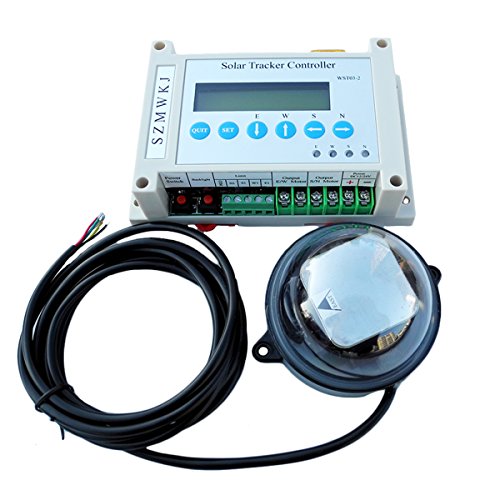

SZMWKJ Dual Axis Solar Tracker Linear Actuator Controller for Solar Panel System

Product Name：WST03-2 Dual Axis Solar Tracker Controller

Condition：100% New

Controller Box Dimension：145x90x40mm (5.71"x3.54"x1.57")

Input Voltage：DC12V/24V Max Load Current：6A

Operating Temperature：-20℃ to +60℃ Tracking Accuracy：≤1°

Package Included:

* 1PCS Electronic Controller Box;
* 1PCS Light Sensor with 3Meters Wire;
* 1PCS English User's Manual.

Here for sale is electronic controller for dual axis solar tracking system, it comes with controller box and light sensor. The controller can detect North/South/East/West directions and control the linear actuators to move, and thus realize the solar panel to follow the sunlight and always face to the sunlight.

Users can set up the parameters for actual needs with the LCD screen, once set up well, there is no need to change anything.
Extra Limit Switch and Wind Speed Sensor (Anemometer) can be matched with the controller for actual needs.
This controller uses specialized four-quadrant-structure light sensor.One of the advantage is that the light sensor is inside the waterproof shell which can extend the light sensor's lifespan. Another advantage is that there is a sun-visor which can enlarge the detection angle range and thus increase the tracking accuracy.
