SainSmart DS482i 2 Channel Virtual PC/Mobile Oscilloscope, 20Mhz Analog Bandwidth, 50 MSps Sample Rate, with Logic Analyzer and Signal Generator

Hardware Parameters:
Interface: USB 2.0
Channels: 2
Output: 1k HZ amplitude 1.5V, 50% duty cycle square wave signal
Maximum Sampling Rate: 80M s/ps per channel
Vertical Resolution: 8 bit
Voltage Range: ±5v, expandable to ±50v with X10 probe, extended to ±500v with X100 probe (provided yourself)
Trigger Coupling Mode: AC, DC
Timing Range: 50ns ~ 2s per line
Trigger Condition : Hardware trigger / trigger level + rising edge / falling edge trigger
Trigger Mode: Auto, Normal, Single trigger
Trigger Source: Channel A
Input Impedance: 1M / 25pf
Memory Depth: 64k bytes per channel
Power Consumption: < 2 watts
Weight: 230 g
Automatic Measurement: maximum, minimum, peak-to-peak, frequency, average, rms, rise time, positive pulse width, negative pulse width, duty cycle

Size: 15.25 cm x 9.32 cm x 2.31 cm

Software:

1. https://s3.amazonaws.com/s3.image.smart/download/101-10-193-482i/DS48xx%20v5.0.0.rar

2.https://s3.amazonaws.com/s3.image.smart/download/101-10-193-482i/DS482i-3-1.0.2.apk

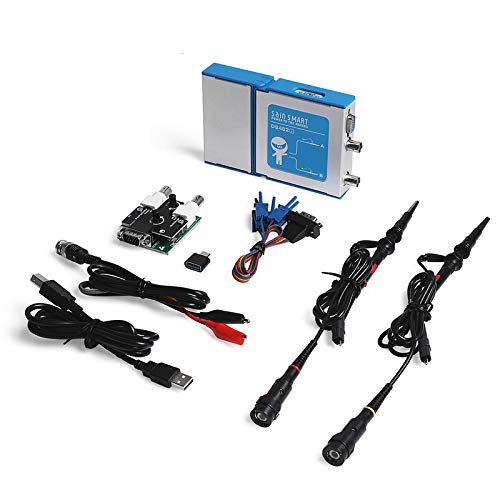

Package List:

1 x DS482i

1 x USB Printer Cable (A port to B port)

2 x Probes

1 x Logic Analyzer

1 x Signal Generator
