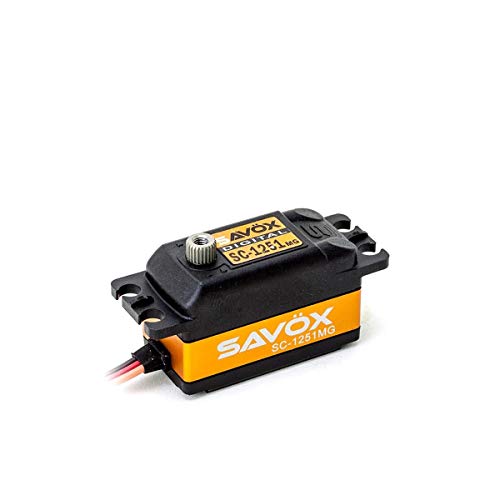

Savox SC-1251MG Coreless Motor, Metal Gear, Low Profile Size

Savox SC-1251MG Coreless Motor, Metal Gear, Low Profile Size Digital Servo (0.09/125.0)
- Torque(@6V): 125.0 oz-in
- Speed(@6V): 0.09 sec/60
- Dimension LxWxH(mm): 10.3x20.2x25.4; Weight(g): 44.5
- Super High 12 bit (4096) Digital Resolution Professional Grade Servos
- Coreless Motor Driven, Nominal Operating Voltage 4.8-6.0V
- Drivetrain: Metal Gear; Spline: 25T; Bearing: 2BB; Case: Anodized Aluminum Body
- Ideal as a steering servo for 1/10 surface applications and in gliders and airplanes that have thin wing profiles
Dimensions(mm): 40.8X20.2X25.4
Weight(g): 44.5
Speed(@4.8V sec/60): .10
Torque(@4.8V oz-in): 97.2
Speed(@6.0V sec/60): .09
Torque(@6.0V oz-in): 125.0
Gear: Metal
Bearing: 2BB
Case: Aluminum
25 Tooth Spline
Frequency: 250-333hz
Pulse Width Frequency: 1520
Operating Temperature Range (C) -10-50
Operating Voltage Range (V): 4.8-6.0
Running current (at no load): 150 mA @ 4.8V
Running current (at no load): 180 mA @ 6.0V
Stall current (at locked): 2000 mA @ 4.8V
Stall current (at locked): 3000 mA @ 6.0V
Idle current (at stopped): 5 mA @ 4.8V
Idle current (at stopped): 5 mA @ 6.0V
Limit angle: 153Â°Â±5Â°
Connector wire gauge: ï¼ƒ22 AWG
Connector wire length: 300 Â±5 mm
Horn gear spline: 25T
Control system: Pulse width modification
Amplifier type: Digital Controller
Operating Trave: 90Â° (when 1000â†’2000 Î¼sec)
Neutral position: 1500 Î¼sec
Dead band width: 5 Î¼sec
Rotating direction: Clockwise (when 1500â†’2000 Î¼sec)
Pulse width range: 950â†’2050 Î¼sec
Maximum travel: Approx 160Â° (when 700â†’2300 Î¼sec)

Country	USA
Brand	Traxxas
Manufacturer	Savöx
Binding	Toy
ItemPartNumber	SC1251MG
Model	SAVSC1251MG
Warranty	1 year warranty against manufacturer defects
Color	(0.09/125.0)
ReleaseDate	2016-01-01
Size	Large
UnitCount	1
UPCs	471000699011
EANs	0602847437348

Savox SC-1251MG Coreless Motor, Metal Gear, Low Profile Size Digital Servo (0.09/125.0)
