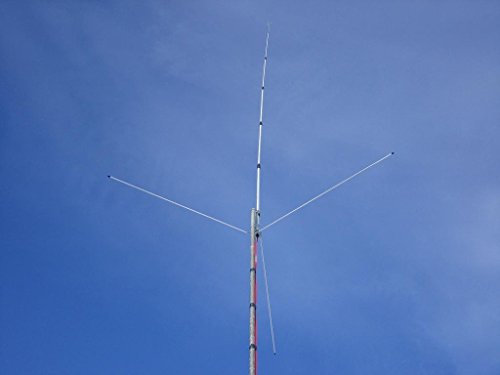

Sirio GPE 27 5/8 26.4-29 Mhz Tunable Base Antenna

Sirio GPE 27 5/8 26.4-29 Mhz Tunable Base Antenna

Product ID: B07DZM17T7 Condition: New
Payflex: Pay in 4 interest-free payments of R1,910.25. Read the FAQ
R 7,641
includes Duties & VAT
Delivery: 10-20 working days
Ships from USA warehouse.
Secure Transaction
VISA Mastercard payflex ozow
Buy in USA

Product Description

Sirio GPE 27 5/8 26.4-29 Mhz Tunable Base Antenna

This CB/10Meter Base Station Antenna Combo kit contain two great items in one, you will get 100 Ft high quality mini8 cable and well reviewed Sirio GPE Antenna, Base station antenna tunable from 26.4 to 29Mhz and 10m band.Strong and easy to install, they allow very good links!

1) Sirio GPE 27 5/8 26.4-29 Mhz Tunable Base Antenna

Base station antenna tunable from 26.4 to 29Mhz and 10m band. They are made of anti-corodal aluminium tubes and supplied with polythene jointing sleeves to guarantee a perfect waterproofing. Strong and easy to install, they allow very good links!

  • Base station antenna, Omnidirectional
  • Tunable by acting on the whip length
  • Low radiation angle for excellent DX
  • Coil protected by transparent cover
  • Whip equipped whit waterproof jointing sleeve
  • Made of aluminium alloy 6063 T-832
  • Protection from static discharges DC-Ground

  • Type: GPE 27 5/8: 5/8λ ground plane
  • Frequency range: tunable from 26.4 to 29.0 MHz
  • Impedance: 50Ω
  • Radiation (H-plane): 360° omnidirectional
  • Polarization: linear vertical
  • Gain: GPS 27 1/2: 0 dBd, 2.15 dBi
  • Bandwidth - SWR ≤ 2: ≥ 1600 KHz
  • SWR at res. freq.: ≤ 1.3
  • Max. power: 250 Watts (CW) continuous ; 750 Watts (PEP) short time
  • Feed system / position: Transformer DC-ground / base
  • Connector: UHF-female

  • Materials: Aluminium, Steel, Copper, Nylon
  • Wind resistance: 130 Km/h
  • Wind load: GPE 27 5/8: 188 N at 150 Km/h
  • Wind surface: GPE 27 5/8: 0.13 m²
  • Height (approx.): 5950 mm
  • Weight (approx.): 2500 gr
  • Radial length (approx.): GPE 27 5/8 1320 mm
  • Mounting mast: Ø 35-42 mm

    2) Taurus 100Ft RG8X Mini8 Coax Cable with PL 259 connectors - High Quality Cable!

  • 100 FT Length
  • 50 ohm impedance
  • (2) PL259 Male Connectors
  • Heavy Duty Super Flexible Gray Jacket
  • 3000 Watt Power Handling
  • 95% Copper Shield
