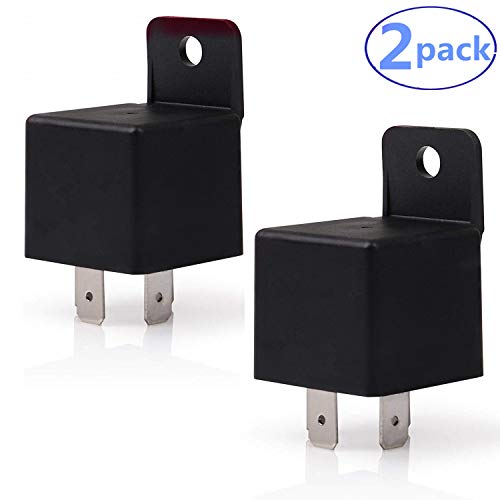

SoundOriginal Car Hron Relay 4 Pin 12v 40amp Spst Model No

SoundOriginal Car Hron Relay 4 Pin 12v 40amp Spst Model No JD1912 12VDC 40A 14VDC Auto Switches & Starters, 2 Pack
- 40 amp relay, Brand new heavy duty 4-prongs SPST relays JD1912 12VDC Offering Single Pole Double Throw (SPDT) Technology
- High 40A coil capacity- able to handle those high current applications with ease
- Use optional Relay Harness, or female Crimp Connectors
- Manufactured for Durability with An Attractive Black ABS Housing, Pin Specifications: Ground (85), VDC (30), Trigger (86), Output N/C (87a), and Output N/O (87).
- Package Include: 2 x 40A 4-Pin 12V Vehicle Relays, Mechanical life of 10,000+ cycles
A pack of two Bosch style 4 pin SPDT 12V, 30/40 Amp electrical relay. This relay has a universal application and can be used in automotive setups, car sound systems, security systems, and various other applications. Comes with mounting tab for easy installation.
I
nterchangeable/Compatible with:
All automobiles and devices equipped with a 12 Volt DC power source.

Features:

Bosch style 4-Pin SPDT (Single Pole Double Throw) Relay.
40A/30A High Switching Capability.
Pin Specifications: Ground (85), VDC (30), Trigger (86), Output N/C (87a), and Output N/O (87). I

Product Content:

2 x Relay

Contact Data:
Contact Material: AgSnO12
Contact Form: 1Z(C) / 1H(A)
Contact Ratings: No: 40A 72VDC
Contact Resistance: 100mMax at 6VDC 1A
Max switching Current: 40A
Max Switching Power: 560W
Life Expectancy Electrical: 100,000 Operations (at 30 Operations/min)
Life Expectancy Mechanical: 10,000,000 Operations

Coil Specification:
Nominal Voltage(VDC): 12V
Coil Resistance (1.8W): 80
Max Operate Voltage (VDC): 6.5~8.0
Mix Release (VDC): 1.2~3.6
Max Applicable Voltage (VDC): 14

Characteristics:
Temperature Range: -30Â°C ~+80Â°C
Vibration Resistance: 10~55Hz, 1.5mm
Shock Resistance:
Operations Extremes: 10g
Damage Limits: 100g
Humidity: 40%~85% I
nsulation Resistance: 100m ohm Min at 500VDC
Safety Standard: CCEE
Dielectric Strength Between Open Contacts: 500VAC (for one minute/sec)
Between Contact and coil: 750VAC (for one minute/sec)
Operate Time: 7ms
Release Time: 5ms
Weigh: Approx. 35g
Country USA
Brand SoundOriginal
Manufacturer SoundOriginal factory
Binding Unknown Binding
ItemPartNumber SOGN-JD1912-190409002
Model SOGN-JD1912-190409002
Color Black 12V 2pack
UnitCount 2
ReleaseDate 0000-00-00

Country	USA
Brand	SoundOriginal
Manufacturer	SoundOriginal factory
Binding	Unknown Binding
ItemPartNumber	SOGN-JD1912-190409002
Model	SOGN-JD1912-190409002
Color	Black 12V 2pack
UnitCount	2
ReleaseDate	0000-00-00

SoundOriginal Car Hron Relay 4 Pin 12v 40amp Spst Model No JD1912 12VDC 40A 14VDC Auto Switches & Starters, 2 Pack
