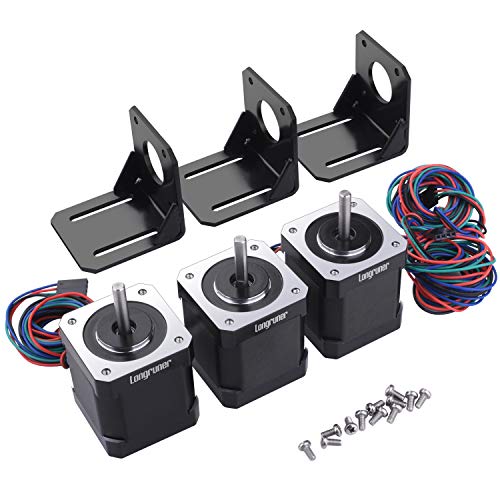

Stepper Motor, Longruner Nema 17 Bipolar 42mm 37oz.in(26Ncm) 12V 0.4A Lead 3D Printer Hobby CNC (3 packs)
Product Description
Stepper Motor, Longruner Nema 17 Bipolar 42mm 37oz.in(26Ncm) 12V 0.4A Lead 3D Printer Hobby CNC (3 packs)
Product description Stepper Motor Specification: *Step Angle: 1.8 deg. *Holding Torque: 59Ncm(84 oz.in) *Rated Current/phase: 1.7A *Frame Size: 41 x 41mm *Body Length: 47mm *Shaft Diameter: 5mm *Shaft Length: 22mm *Weight: 380g Mounting Bracket Kit Specification: Three Pack - NEMA 17 Mounting Bracket - 90 degrees - M3 Screws Included (12) - Mounting Holes: 31mm center-to-center - Max Collar Diameter: 22mm - Powder-coated steel - Nema17 Standard - Mounting Holes: 31mm center-to-center - Max Collar Diameter: 22mm Package Including: *3 Pack Nema 17 stepper motor with 1m Cable & Connector *3 Pack - Nema 17 Stepper Motor Mounting Bracket *12 pcs M3 Screws Warning: *Make sure the motor connect to a constant current or chopper drive controller before you test motor. *Connecting the motor directly to a power supply will destroy the motor.
Technical Specifications
