SunFounder Analog Temperature Sensor Module for Arduino and

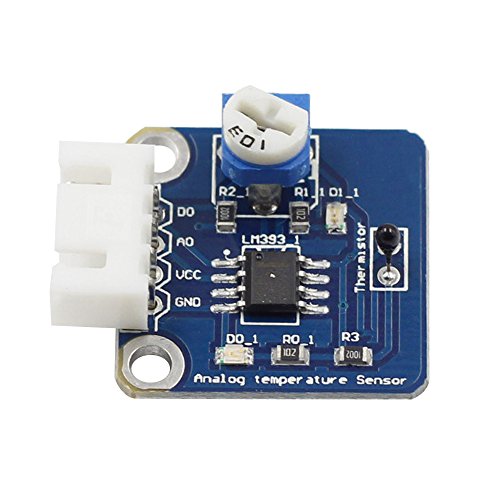

SunFounder Analog Temperature Sensor Module for Arduino and Raspberry Pi
- An NTC thermistor sensor is included, supporting high sensitivity.
- A comparator LM393 is contained, so it can output both digital and analog signals at the same time.
- Include a potentiometer to adjust the threshold of detection.
- Working voltage: 3.3V-5V; PCB size: 2.3 x 2.3 cm
- High measurement accuracy with a wide range, good stability, and strong overload capacity. For more information, please refer to http://wiki.sunfounder.cc/index.php?title=Analog_Temperature_Sensor_Module
Introduction ï¬
An analog temperature sensor module that consists of an NTC thermistor, resistor, capacitor in a circuit. ï¬
The NTC thermistor is very sensitive to ambient temperature and hence widely used to detect the temperature, with a wide range of temperature measurement ï¬
The threshold of temperature detection can be adjusted by rotating the potentiometer. When the temperature exceeds the threshold, D0 outputs low and the corresponding LED will light up. ï¬
A 4-pin anti-reverse cable included.

Application
The module can be applied to temperature detection, temperature control sensor, and ambient temperature detection, as well as temperature alarm.

Component List
-1 x Analog temperature sensor module
-1 x 4-Pin anti-reverse cable
