SunFounder LCD1602 Module with 3.3V Backlight Compatible with

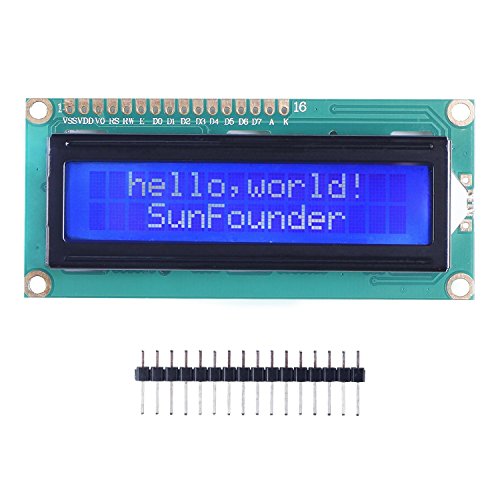

SunFounder LCD1602 Module with 3.3V Backlight Compatible with Arduino R3 Mega2560 Raspberry Pi 16x2 Character White on Blue Background
- Display 2 lines of 16 characters including letter, number, and symbol
- Working voltage: 5V; contrast adjustable with a 50K potentiometer onside
- Module dimensions: 80 x 36 x 12 mm; Viewing area size: 64.5 x 16 mm
- Bright blue backlight (better than green), displaying characters clearly
- Low cost and easy to use, perfect for beginners
Introduction
LCD1602 is an industrial character type LCD that can show 16*2, i.e. 32 characters. The character generator ROM in the LCD module has already stored 160 different characters in dot matrix, including Arabic numbers, letters in low and upper case, and common symbols. In Arduino IDE, a built-in library LiquidCrystal can be called directly, and you don't need to write it, which is pretty convenient for beginners.
Its working voltage is 5V, and you can adjust the contrast via the 50K potentiometer. For the backlight, just connect pin A to 3.3V and K to GND, and then it will light up.

Note: You need to solder the Pin Headers before application.

Pins of LCD1602 and their functions:
VSS: connected to ground
VDD: connected to a +5V power supply
VO: to adjust the contrast
RS: A register select pin that controls where in the LCD's memory you are writing data to. You can select either the data register, which holds what goes on the screen, or an instruction register, which is where the LCD's controller looks for instructions on what to do next.
R/W: A Read/Write pin to select between reading and writing mode
E: An enabling pin that, when low-level energy is supplied, causes the LDC module to execute relevant instructions.
D0-D7: to read and write data
A and K: Pins that control the LCD backlight
For more details, refer to our WIKI page:
http://wiki.sunfounder.cc/index.php?title=LCD1602_Module

Package Included:
-1 x LCD1602
-16 x Pin Headers
Country USA
Brand SunFounder
Manufacturer SunFounder
Binding Electronics
ItemPartNumber 1602LCD
Model 1602LCD
Warranty 1 Year Guarantee
Color LCD1602 (1Pack)
UPCs 606034415195
EANs 0606034415195
ReleaseDate 0000-00-00

Country	USA
Brand	SunFounder
Manufacturer	SunFounder
Binding	Electronics
ItemPartNumber	1602LCD
Model	1602LCD
Warranty	1 Year Guarantee
Color	LCD1602 (1Pack)
UPCs	606034415195
EANs	0606034415195
ReleaseDate	0000-00-00
