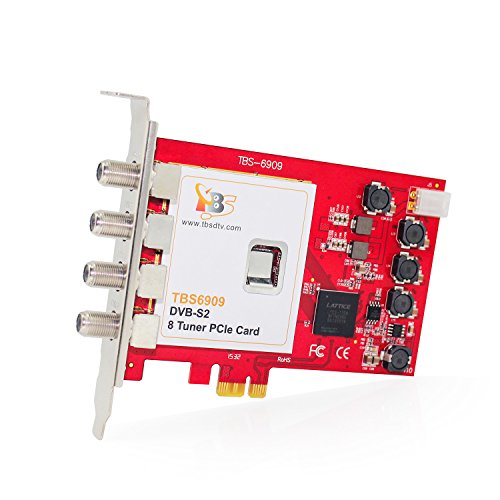

TBS 6909 DVB-S/S2 8 Tuner PCI Express Card for Satellite Live

TBS 6909 DVB-S/S2 8 Tuner PCI Express Card for Satellite Live TV/IPTV Server
- DVB-S2/S 8 tuner
- Watch & record satellite TV/ radio programs on PC
- EPG (Electronic Program Guide) support
- Unicable/one cable compatible
- High-speed data download via satellite
A powerful DVB-S2 octa tuner card with PCI Express interface, it is capable of receiving SD/HD digital TV channels from 8 different satellite transponders simultaneously, which is considered as a professional TV tuner for industrial-level users. When you have limited PCIe slots in your server, TBS6909 enables you to receive more channels than the usual dual or quad TV tuner, thus it is highly recommended for IPTV streaming and broadcasting system.

Applications:
Data receiving
IPTV streaming
Media monitoring
Digital content distribution

Specifications:
Frequency range: 950~2150 MHz
Signal Level: -85~-10dB
Symbol rate: 1~45Msps
Demodulation:
DVB-S QPSK, DVB-S2 8PSK
FEC:
DVB-S2
Â Â Â Â Â 8PSK: 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
DVB-S
Â Â Â Â Â QPSK: 1/2, 2/3, 3/4, 5/6, 7/8
DiSEqC support: 1.0, 1.2, 2.x
Dimension: 130*92mm (length x height)
Max Power consumption: 24W

Connections:
PCI Express
4x RF IN
This card has 8 Tuners & Demodulators, but it only has 4 inputs, because it has a multiswitch inside, defining 4 inputs to receive 4 single polarity signals( Input0=VL; Input 1=VH; Input 2=HL; Input3=HH)

System Requirements:
Windows 2000/XP/Vista/7/8/10 or Linux OS
Available PCI Express x1, x4, x8 or x16 slot
Satellite dish and LNB

Package Contents:
1 x TBS 6909
1 x DC line
