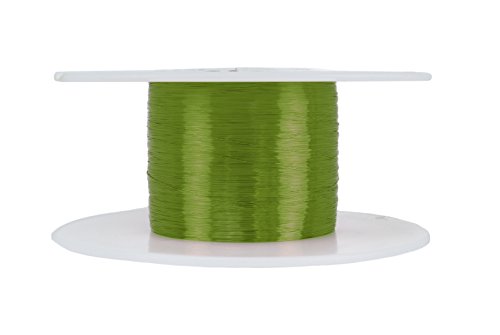

TEMCo 40 AWG Copper Magnet Wire - 4 oz 7980.5 ft 155°C Magnetic Coil Green

Sold Out / Out of Stock

This item may be available in a different size, colour, scent, version or platform:

Variations

TEMCo 40 AWG Copper Magnet Wire - 4 oz 7980.5 ft 155°C Magnetic Coil Green
- Average Wire Diameter (in.): 0.0038 (with insulation), 0.0031 (no insulation)
- Double (Heavy) Build enamel, Polyurethane base coat, Polyamide overcoat.
- Shape: Solid Round Copper (99.9% pure). NOTE: Both ends of wire are accessible.
- Approvals: NEMA MW 80-C, IEC Designation (60317-21), UL Recognized (File: E32638)
- Applications include but not limited to: Appliance motors, relays, timer and clock coils, encapsulated coils, arts & crafts.
SoderonÂ® combines the magnet wire insulation characteristics of polyurethane with the advantages of a polyamide (nylon) topcoat. With the nylon, SoderonÂ® is still readily solderable, yet the solvent resistance and thermal stability of the insulation is excellent. In addition, the nylon improves windability and tolerates more severe winding operations. SoderonÂ® is an excellent choice for automatic winding machines.
Country USA
Manufacturer TEMCo Industrial
ItemPartNumber MW0597
Color 4 oz
Size 40 AWG
UnitCount 1
UPCs 702082768181
EANs 0702082768181
ReleaseDate 0000-00-00
