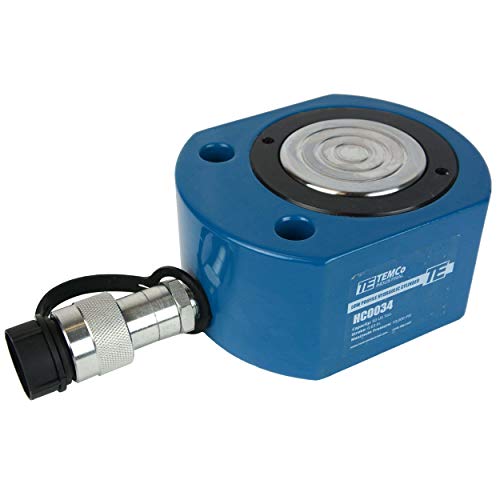

TEMCo HC0034 Low Profile Height Hydraulic Cylinder Puck 50

TEMCo HC0034 Low Profile Height Hydraulic Cylinder Puck 50 Ton, 0.63" Stroke (Optional Tonnages Availiable)
- 50 US Ton Capacity. 0.63" Stroke
- Max Pressure 10,000 PSI. Single acting - Pressure extend, Spring return.
- Hard black oxide plated high carbon steel ram. Proprietary heat-treated steel shell.
- Connector Type: 3/8" NPT ISO 14540 quick hydraulic coupler with dust cap
- 5 Year Warranty from an American name. NON-GENERIC
Capacity (Tons): 50
Stroke (in.): 0.63"
Maximum Pressure (PSI): 10,000
Type: Telescoping Hydraulic Cylinder
Action: Single acting - Pressure extend, Spring return
Ram Material: Hard black oxide plated high carbon steel
Shell Material: Proprietary Heat-treated Steel
Oil Volume (Cubic in.): 6.163 inÂ³
Effective Area (Square in.): 10.974 inÂ²
Closed Height (in.): 2.834"
Extended Height (in.): 3.464"
Weight (lbs): 17.7
Max Pressure: 10,000 PSI
Minimum Operating Temperature: -15Â°C
Connector Type: 3/8" NPT ISO 14540 quick hydraulic coupler with dust cap

Coupler Specifications

Standard: ISO 14540
Thread (between male poppet end and coupling ring): M30 x 1.5 mm
Thread: 3/8" NPT
Occlusion Type: Poppet
Rated Pressure: 10,000 psi
Rated Flow: 6 GPM
Sealing Material: Nitrile Rubber (Buna-N, NBR)

Interchangeable With:

Enerpac C-604
Parker 3000 Series
Safeway S30 Series
Stucchi IVHP Series
Perfecting T Series
Snap Tite 76 Series
Dnp PVM Series
Faster PVVM Series

Country USA
Brand TEMCo Industrial
Manufacturer TEMCo Inudstrial
Binding Unknown Binding
ItemPartNumber HC0034
Model HC0034
Size 50 Ton, 0.63" Stroke Puck
UnitCount 1
ReleaseDate 0000-00-00

Country	USA
Brand	TEMCo Industrial
Manufacturer	TEMCo Inudstrial
Binding	Unknown Binding
ItemPartNumber	HC0034
Model	HC0034
Size	50 Ton, 0.63" Stroke Puck
UnitCount	1
ReleaseDate	0000-00-00

TEMCo HC0034 Low Profile Height Hydraulic Cylinder Puck 50 Ton, 0.63" Stroke (Optional Tonnages Availiable)
