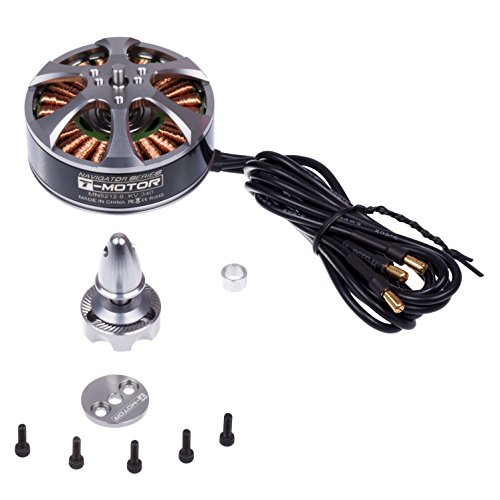

T-Motor MN5212 KV340 High-Performance Brushless Electric Motor

T-Motor MN5212 KV340 High-Performance Brushless Electric Motor for Multi-Rotor Aircraft
- Specs: 340KV, 35A 840W max continuous power
- Weight/dims: Shaft 6mm, Stator 52mm x 12mm, motor 59 x 33.5mm, 205g
- No. of Cells (Lipo): 4-8S
- Efficiency: Max (5-12A) > 83%, Idle 1.1A @ 10v
- Internal resistance: 69 milliohms
Tiger Motors T-Motor MN5212 340KV is a high-performance brushless motor specifically designed for use on multi-rotor aircraft such as quadcopters and hexacopters.

Featuring precision workmanship and EZOÂ® Bearings from world renowned Japanese bearing manufacturer Sapporo Precision, Inc., T-motors are smooth running and well balanced right out of the box. This cuts down on vibrations that can negatively affect aerial video and autopilot inertial sensors.

With epoxy-coated Kawasaki stator plates for low eddy current loss, oxygen-free copper windings for low resistance, and N45UH high-temperature Neodymium magnets, T-motors are highly efficient and can maintain good performance even up to 180Â° C.

This MN5212 340KV motor is recommended for use with 4 to 8S LiPo and 15x5 to 18x6.1 props. See photo library above for detailed spec sheet and dimensional CAD drawing.

T-Motors are backed by a two-year manufacturer's warranty on materials and workmanship.
Country USA
Binding Toy
Brand T-Motor
EAN 8718503646725
Label T-Motor
Manufacturer T-Motor
MPN MN5212
PartNumber MN5212
Publisher T-Motor
Studio T-Motor
ReleaseDate 0000-00-00

Country	USA
Binding	Toy
Brand	T-Motor
EAN	8718503646725
Label	T-Motor
Manufacturer	T-Motor
MPN	MN5212
PartNumber	MN5212
Publisher	T-Motor
Studio	T-Motor
ReleaseDate	0000-00-00

T-Motor MN5212 KV340 High-Performance Brushless Electric Motor for Multi-Rotor Aircraft
