Teyleten Robot IR Infrared Obstacle Avoidance Sensor Module

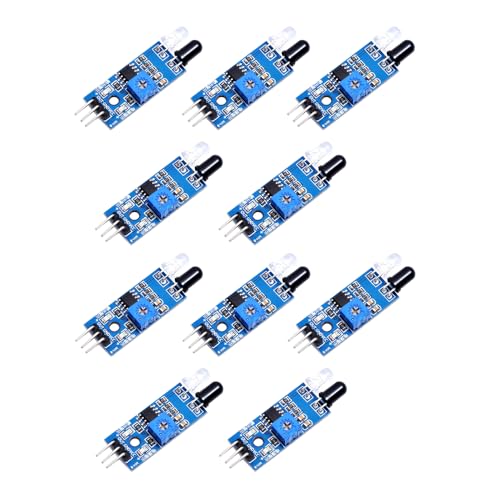

Teyleten Robot IR Infrared Obstacle Avoidance Sensor Module Smart Car Robot 3-Wire Reflective Photoelectric for Arduino 10pcs
- When the module detects the signal of the obstacle ahead, the green LED on the circuit board lit level, while the OUT port continues to output a low-level signal, the module detects the distance of 2 ~ 30cm, the detection angle of 35 °, the detection distance can be adjusted through the potentiometer, clockwise adjust the potentiometer, the detection distance increases; counterclockwise adjust the potentiometer, the detection distance decreases.
- Sensor active infrared reflection detection, so the reflectivity and shape of the target is the key to the detection distance. Black detection distance is the smallest, white is the largest; small area object distance is small, large area distance is large.
- Sensor module output port OUT can be directly connected to the microcontroller IO port, you can also directly drive a 5V relay; connection: VCC-VCC; GND-GND; OUT-IO
- 3-5V DC power supply can be used to power the module. When the power supply is on, the red power indicator lights up;
- Each module has been shipped with the threshold comparison voltage adjusted by a potentiometer, do not adjust the potentiometer arbitrarily without special circumstances.
Country USA
Brand Teyleten Robot
Manufacturer Teyleten Robot
ItemPartNumber F34-
ReleaseDate 0000-00-00

Teyleten Robot IR Infrared Obstacle Avoidance Sensor Module Smart Car Robot 3-Wire Reflective Photoelectric for Arduino 10pcs
