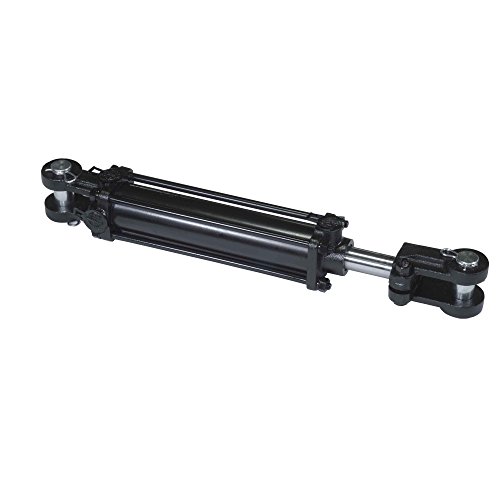

Titan Hydraulic Cylinder Tie Rod Style 2" Bore 6" Stroke 3,000

Titan Hydraulic Cylinder Tie Rod Style 2" Bore 6" Stroke 3,000 PSI 2x6
- Building an attachment? Save time an money using a Titan cylinder.
- Replace an old cylinder saving your attachment from the scrap yard.
- Rated to handle a continuous load of 3,000 PSI.
- Sealed ports from the factory means this cylinder is ready to be plugged into your attachment.
- Weight: 16.5 LBS - Bore: 2" - Stroke: 6" - Rod diameter: 1.125"
The Titan Hydraulic Cylinder delivers the power you need to run your hydraulic attachments!

Rated to handle continuous loads of 3000 PSI, this heavy duty cylinder is great for replacing cylinders, or even for building your own attachments- versatility is the name of the game.

Features:
- Building an attachment? Save time and money using a Titan cylinder.
- Replace an old cylinder, saving your attachment from the scrap yard.
- Rated to handle a continuous load of 3,000 PSI.
- Pressure tested with ports sealed from the factory.
- Double acting cylinder
- Cross tube mounting style

Specifications:
- Weight: 16.5 lb
- Bore: 2"
- Stroke: 6"
- Rod diameter: 1.125"
- Pin to Pin: 16.25"
- Port to Port: 9.25"
- Rod length extended: 6.25"
- Rod length retracted: .25"
- Overall length extended: 24.25"
- Overall length retracted: 18.25"
- Pin inside diameter: 1"
- Pin outside diameter: 2"
- Port size: 11/16" (17 mm)
- Working pressure: 3,000 PSI
Country USA
Brand Titan Attachments
Manufacturer Titan Attachments
Binding Misc.
ItemPartNumber CYL2X6
UnitCount 1
UPCs 049008265165
EANs 0049008265165
ReleaseDate 0000-00-00

Country	USA
Brand	Titan Attachments
Manufacturer	Titan Attachments
Binding	Misc.
ItemPartNumber	CYL2X6
UnitCount	1
UPCs	049008265165
EANs	0049008265165
ReleaseDate	0000-00-00

Titan Hydraulic Cylinder Tie Rod Style 2" Bore 6" Stroke 3,000 PSI 2x6
