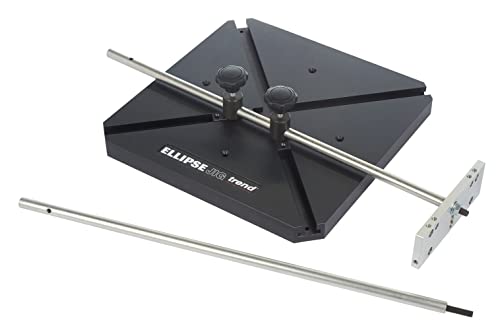

Trend Ellipse and Circle Cutting Jig, Enables Precise Elliptical or Circular Cuts for Tables, Arches, Desks, and Mirrors, ELLIPSEJ/A

Trend Ellipse & Circle Cutting Jig Ellipse J/A TREELLIPSE

Designed to enable virtually any router to cut ellipses and circles.

Used for corner tables, arches, desks and mirrors. Setting-up and operating is simple and effective. A connector plate on the end of the bar fits directly onto the fence rods of Trend routers. For the fixing of other makes of routers, an accessory adaptor base plate is required. By using one slide, the jig can be adapted for cutting circles. With additional extension bars, larger ellipses and circles can be cut.

Specifications:
Ellipse major axis: 1800 mm.
Ellipse minor axis max: 1650 mm.
Ellipse minor axis min: 1400 mm.

Ellipse major axis: 1500 mm.
Ellipse minor axis max: 1350 mm.
Ellipse minor axis min: 1100 mm.

Ellipse major axis: 1200 mm.
Ellipse minor axis max: 1050 mm.
Ellipse minor axis min: 800 mm.

Ellipse major axis: 900 mm.
Ellipse minor axis max: 760 mm.
Ellipse minor axis min: 550 mm.

Ellipse major axis: 800 mm.
Ellipse minor axis max: 650 mm.
Ellipse minor axis min: 550 mm.

Ellipse major axis: 700 mm.
Ellipse minor axis max: 580 mm.
Ellipse minor axis min: 580 mm.

Circle dia. min: 580 mm.
Circle dia. max: 1800 mm.

Includes: 1 x cross frame, 2 x sliders, 2 x 500 mm bars and 1 x connector plate.

TREELLIPSE
