Tycon Systems TP-DCDC-1248GD-HP 56V DC 35W Out DC to DC

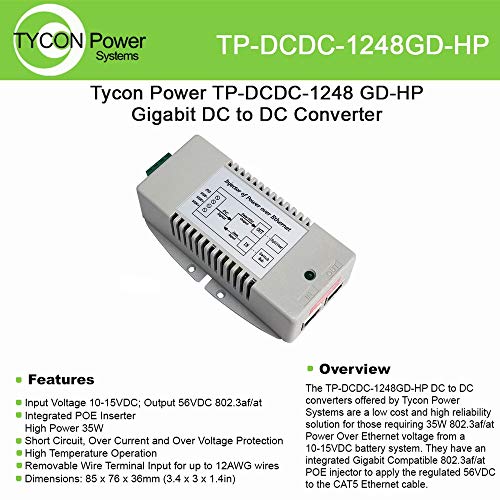

Tycon Systems TP-DCDC-1248GD-HP 56V DC 35W Out DC to DC Converter and POE Inserter
- The TP-DCDC-1248GD-HP offered by Tycon Power is a low cost and high efficiency solution for those requiring IEEE802.3af and IEEE802.3at Power over Ethernet from a 12VDC voltage source like a battery system or vehicle
- They have an integrated POE injector to apply the power and data output to the CAT5/6 Ethernet cable
- The output voltage is regulated and protected. They have a common (-) and two (+) inputs for connecting 2 power sources, such as a primary with a backup power source
- They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack
- Applications: 12V Battery Systems, Vehicle Applications; Wireless Access Points and Client Devices; IP Phone and Security Camera Systems
The TP-DCDC Gigabit Series of DC to DC converters offered by Tycon Power Systems are a low cost and high efficiency solution for those requiring IEEE802.3af and IEEE802.3at Power Over Ethernet from a 12VDC or 24VDC or 48VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the 802.3af or 802.3at output to the CAT5 Ethernet cable. The output voltage is regulated 48VDC-56VDC. They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. A metal enclosure model is available for industrial applications. They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and POE power on the shielded RJ45 output jack. They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The units have power outputs up to 35W. If the remote device does not support 802.3af or 802.3at power over Ethernet, a TP-POE-1224 802.3xx converter is available to change the POE output to passive POE with 12V or 24VDC POE output. Product Type: PoE Injector Product Type: PoE Injector Compatibility: 12V / 24V / 48V Battery Systems Wireless Access Points Client Devices IP Phone Security Camera Systems Input Voltage: 12 V DC Manufacturer Part Number: TP-DCDC-1248GD-HP Limited Warranty: 1 Year Weight (Approximate): 10.58 oz Network Technology: 10/100/1000Base-T Certifications & Standards: IEEE802.3af IEEE802.3at FCC Class B EN55022 Class B UL1950 CSA 22.2 TUV EN60950 Length: 4.9 Manufacturer: Tycon Power Systems Product Model: TP-DCDC-1248GD-HP Product Name: TP-DCDC-1248GD-HP PoE Injector Brand Name: Tycon Power Product Series: TP-DCDC Brand Name: Tycon Power Input Ports: 10/100/1000Base-T Output Ports: 10/100/1000Base-T Height: 1.5 Width: 3 Maximum Output Power: 35 W Maximum Output Voltage: 56 V DC
Country USA
Brand Tycon
Manufacturer Tycon Power
Binding Electronics
ItemPartNumber TP-DCDC-1248GD-HP
Model TP-DCDC-1248GD-HP
Color gray
UPCs 633090397042
EANs 6330903970426
ReleaseDate 0000-00-00

Country	USA
Brand	Tycon
Manufacturer	Tycon Power
Binding	Electronics
ItemPartNumber	TP-DCDC-1248GD-HP
Model	TP-DCDC-1248GD-HP
Color	gray
UPCs	633090397042
EANs	6330903970426
ReleaseDate	0000-00-00

Tycon Systems TP-DCDC-1248GD-HP 56V DC 35W Out DC to DC Converter and POE Inserter
