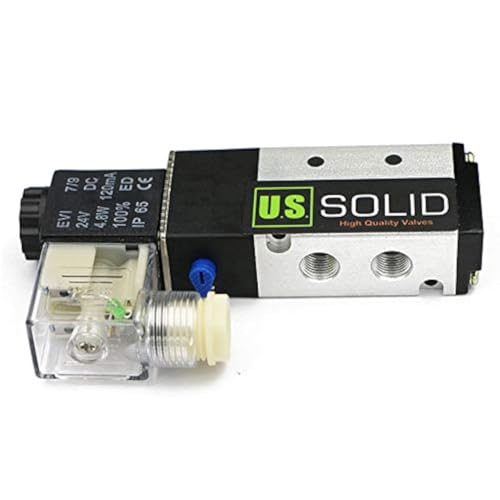

U.S. Solid 1/8inches NPT 5 Way 2 Position Pneumatic Electric

U.S. Solid 1/8inches NPT 5 Way 2 Position Pneumatic Electric Solenoid Valve DC 24 V from U.S. SOLID
- Precision pneumatic control: Enables accurate regulation of position, flow, pressure, and temperature with high efficiency and effectiveness.
- Exceptional reliability and durability: Demonstrates a remarkable lifespan, minimal power consumption, and consistent performance, reflecting its superior quality and long-term operational stability.
- Advanced multi-port configuration: Incorporates 5 ports for intricate air flow management, ensuring precise and dynamic control over pneumatic systems for optimal functionality.
- Streamlined installation and maintenance: Simplifies setup and upkeep processes through prewired connections, offering a user-friendly experience and enhancing operational convenience.
- Versatile industrial utility: Widely employed in diverse sectors such as robotics, automation, and manufacturing, showcasing its adaptability and wide-ranging applications.
This is the US Solid 1/8" 5 way 2 Position Pneumatic Electric Solenoid Valve. It is a switch for routing air to any pneumatic device, usually an actuator, allowing a relatively small signal to control a large device. It is also the interface between electronic controllers and pneumatic systems. This is a 5/2 valve which means it has 5 ports; 2 exhaust ports through which air is regulated as it flows out, 2 power ports that power the system, 1 supply port for the inlet of air pressure, and 2 flow positions. This valve is made with an aluminum alloy and has an aperture of 1/8". This valve allows pneumatic control of position, flow, pressure and temperature. Pneumatic types of valves can be found in a wide array of industries. They are used in Pneumatic Artificial Muscles (PAM) for robotics and automation. Manufacturing companies that use conveyors belts uses pneumatic valves in their conveyor belt systems. US Solid pneumatic valves offer reliability, low power consuming, and have a long life. They are have prewired connections that makes installation, maintenance, and control simple.
Specifications:

Brand U.S. Solid

SKU: JFPSV00006

GTIN-12 (U.P.C.): 888107024538

U.S. Solid Model: USS- PSV00006Â

Valve Type: 2 Position 5 Way

Thread Type: NPT

Operation/ Property: Normally Closed

Material: Aluminum Alloy

Size: 1/8"

Voltage: DC 24 V

Applicable Media: Filtered Air

Effective Section Area (mmÂ³): 12

Flow Value (Cv): 0.67

Insulation & Protection: Class F; IP 65

Working Pressure: Â 0.15 ~ 0.8 Mpa

Max. Pressure Resistance: 1.2 Mpa

Direct Operated/ Pilot Operated: Direct Acting

Operation Temperature: 1â„ƒ - 70â„ƒ

Package Weight: 7.8 oz.

Package Dimensions: 4.75" x 2.75" x 1"

Â
Country USA
Brand U.S. Solid
Manufacturer U.S. SOLID
Binding Tools & Home Improvement
ItemPartNumber USS-PSV00006
Model USS- PSV00006
Size 1/8 Inch
UnitCount 1
UPCs 888107024538
EANs 0888107024538
ReleaseDate 0000-00-00

Country	USA
Brand	U.S. Solid
Manufacturer	U.S. SOLID
Binding	Tools & Home Improvement
ItemPartNumber	USS-PSV00006
Model	USS- PSV00006
Size	1/8 Inch
UnitCount	1
UPCs	888107024538
EANs	0888107024538
ReleaseDate	0000-00-00

U.S. Solid 1/8inches NPT 5 Way 2 Position Pneumatic Electric Solenoid Valve DC 24 V from U.S. SOLID
