Ulincos® Momentary Push Button Switch U16F1 1NO1NC Black

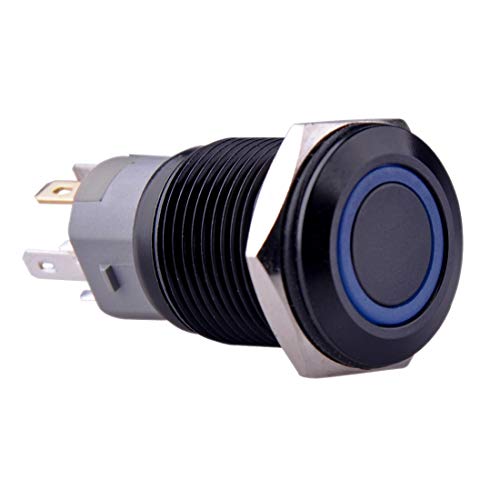

Ulincos® Momentary Push Button Switch U16F1 1NO1NC Black Metal Shell with Blue LED Ring Suitable for 16mm 5/8" Mounting Hole (Blue)
- Momentary switch: Push & Hold,ON; Release,OFF
- The switch and LED are separated, LED can be on all the time or only on when switch is on,depending on how you wire it
- Great for electromagnetic starter, relay, Horn Button Switch, PC Power Switch or any circuit controls
- With a wire connector (not included), you don't need to solder the terminals, make fitting very easy
- IP67, IK10 protection can be used in wet or dusty enviroment
What You Get
1 * pushbutton switch
1 * wiring instruction

What's the Pushbutton Switch
This is a perfect choice if you are in need of a rugged push button! These push buttons are a very tough, small, panel-mount momentary switch with an illuminated blue LED ring. It is a SPDT with 16mm threading. These buttons are rated up to 5A and 250VAC while the LED is rated for 5-12V. You can add a wire connector, then you don't need to solder the terminals, make installing very easy.

What's the Momentary Switch
Momentary switch, normally open, remain in ON state as long as being pressed

What's the Momentary Switch Used for
Most often momentary switches are used for circuits control in electromagnetic starter, stuff like relay, Horn Button Switch, PC Power Switch or any circuit controls

What's Note
-These switches come with a rubber O-ring which makes them splash resistant but they can NOT be submerged in the water

What's the Customer Support
If you have any questions, feel free to contact us by E-mail any time.We get professional customer service staff and technician to help you

Specifications
Thread depth: 5/8" (16mm)
Head diameter: 3/4" ( 18mm )
Button diameter: 0.36" ( 9mm )
Mounting hole size: 5/8" ( 16mm )
Depth inc contacts: 1.3" ( 34mm )
Switch combination: 1NO1NC
Operation types: Momentary
Switch rating: 5A/250VAC, 5A/30VDC
LED rating: 15mA, AC/DC 12V
LED color: Blue
Head shape: Flat
Enclosure material: Aluminium alloy
Protection level: IP67, IK10
Country USA
Brand Ulincos
Manufacturer Ulincos
ItemPartNumber U16F1B
Color Blue
Size 16mm
UnitCount 1
ReleaseDate 0000-00-00

Country	USA
Brand	Ulincos
Manufacturer	Ulincos
ItemPartNumber	U16F1B
Color	Blue
Size	16mm
UnitCount	1
ReleaseDate	0000-00-00
