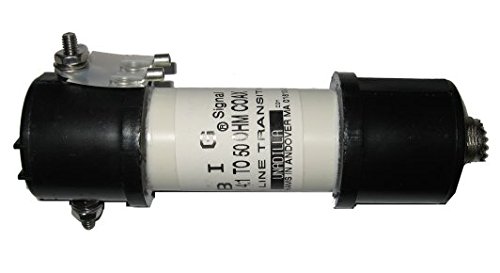

Unadilla W2AU 4:1 Ladder-Line Transition Balun HF 160-6 Meters

Unadilla W2AU 4:1 Ladder-Line Transition Balun HF 160-6 Meters
- Unadilla W2AU 4:1 Ladder-Line Transition Balun HF 160-6 Meters
- Ni4L Dipole Antenna
W2AU 4:1 Ladder-Line Transition BalunÂ Long the standard of the industry the W2AU baluns are built to last! 2 KW PEP (at SWRs of less than 3:1). W2AU Baluns are transformer designs with ferrite cores to provide 95% minimum coupling efficiency. Each has a built-in lightning arrestor, and 600 lbs of pull-apart strength in a weatherized, ruggedÂ package using only stainless steel hardware and quality materials. USAGE NOTE: Since many Hams are the inventive types, it should noted that they also tend to not read the instructions and succeed in achieving their goals. In any event, the matchbox is a tuner and all it does is make the transmitter believe it has an antenna with a lower SWR than it really has. This way it will introduce more power to the antenna than it can typically radiate. A random length antenna, one not tuned to any one frequency is a compromise antenna. Anywhere it is not resonant it will produce significant SWR above 3:1. With 200 watts of continuous key down CW it would heat up the core of the W2AU balun, at the feed point,and damage it, but that is the extreme example. Many Hams understand this and do it anyway with care. Also, note that new solid state equipment further limits your operating options never contemplated over 50 years ago when these instructions were made. The equipment manufacturer dictates the parameters of your operating ability. It is suggested that if using ladderline, no balun, because a balun at the feedpoint, would interfere with the radiation that the offset antenna needs from the ladderline. Instead use a W2AU 4:1 Ladder Line Balun at the end of the ladder line transitioning the ladder line to a coax entry into your shack. A 4:1 extends resonances available. Some hams use a 1:1. These are some ideas in using an offset antenna.

Country	USA
Binding	Electronics
Brand	Ni4L Antennas & Electronics
Label	Ni4L Antennas & Electronics
Manufacturer	Ni4L Antennas & Electronics
Model	W2AU 4:1 Ladder-Line Transition Balun
MPN	W2AU 4:1 Ladder-Line Transition Balun
PartNumber	W2AU 4:1 Ladder-Line Transition Balun
Publisher	Ni4L Antennas & Electronics
Studio	Ni4L Antennas & Electronics
ReleaseDate	0000-00-00

Unadilla W2AU 4:1 Ladder-Line Transition Balun HF 160-6 Meters
