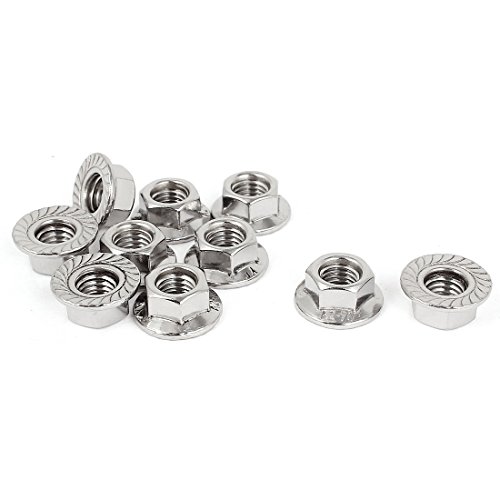

Uxcell a15042300ux0041 22mm Diameter M10x1.5mm Stainless Steel Serrated Hex Flange Nuts (Pack of 10)

This item may be available in a different size, colour, scent, version or platform:

Variations

Uxcell a15042300ux0041 22mm Diameter M10x1.5mm Stainless Steel Serrated Hex Flange Nuts (Pack of 10)
- Product Name : Hex Flange Type : Hex Serrated Flange Diameter : M10
- Thread Pitch : 1.5mm;Flange Diameter (d1) : 22mm/7/8";Width Across Corner Size (e) : 17mm/ 11/16"
- Width Across Flat Size (s) : 15mm/ 5/8";Nut Height (m) : 10mm/ 3/8"
- Material : 304 Stainless Steel; Color : Silver Tone
- Net Weight : 109g;Package : 10 x Hex FlangeNut
Features: 1.5mm pitch, 10mm height, 58 inch hex head, M10 hexagon flange nuts. A flange nut is a nut that has a wide flange at one end that acts as an integrated, non-spinning washer. This serves to distribute the pressure of the nut over the part being secured, reducing the chance of damage to the part and making it less likely to loosen as a result of an uneven fastening surface. The flange may be serrated to provide a locking action. The serrations are angled such that they keep the nut from rotating in the direction that would loosen the nut. Because of the serrations they cannot be used with a washer or on surfaces that cannot be scratched. The serrations help in avoiding vibration of nut and increase the holding power of nut. .
Country USA
Brand uxcell
Manufacturer uxcell
Binding Misc.
ItemPartNumber a15042300ux0041
Model a15042300ux0041
ReleaseDate 2018-08-21
UnitCount 10
UPCs 711331609106
EANs 0711331609106
