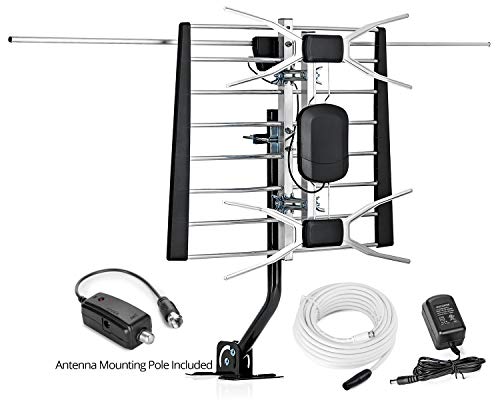

ViewTV WA-2800 Digital Amplified Outdoor/Indoor Attic HDTV Antenna with Mounting Pole - 150 Miles Range
ViewTV WA-2800 Digital Amplified Outdoor/Indoor Attic HDTV Antenna with Mounting Pole - 150 Miles Range
150 Mile Range | ATSC Compatible TV Antennas | Receive free digital broadcast High Definition TV signals
Outdoor Digital TV Antenna comes partially pre-assembled. Minor assembly required.
Full HDTV Support: 720p, 1080i, 1080p | Long Range Antenna has Superior reception outdoors or even when mounted in the attic
Antenna Frequency Range: VHF: 170-230MHz / UHF: 470-860MHz
Roof Antenna Mounting Pole Included
Have a television with a tuner or a digital converter box and want all of those FREE channels? This is the antenna for you!
Receive digital and analog TV broadcast over the air Cross-phase, multi-element design Partially pre-assembled - minor assembly required Superior construction to withstand tough outdoor weather conditions Can be mounted in attic as well
Specifications:
Antenna Frequency Range: VHF: 170-230MHz / UHF: 470-860MHz Number of Elements: 4 Antenna Gain: 30 ± 5 dB Mile Range: 150 Miles Front-Back Ratio: 15-20 dB Impedance: 75 Ohm
Antenna Pole Specifications: Made of weather resistant iron 18.5" in length from bottom to top 1" Diameter
Pole Installation: 1. Place the mast through the mounting base of the J-pole. 2. Level up the mounting base and then mark the pilot holes to be drilled with a marking pen. 3. Drill the pilot holes (with a drill bit about half the diameter of the bolt) into the marked areas. 4. Line up the holes of the mounting base of the J-pole with the drilled holes. 5. Drill and then secure the lag bolts into the pilot holes.
Notes:
- Go to antennaweb.org and type in your street address. This will show you where the broadcast towers near you are located. - If you use a older tube TV, you will likely need a digital converter box to use this antenna. | If you have a flat model TV, check the manual to make sure you have a digital tuner built into it. Newer 4K TV's may or may not have a built-in tuner. -***You need to perform an "automatic channel search" from the MENU of your TV or converter box to get this antenna to work. Please refer to the manual for your television or digital converter box for information on how to perform this action.***
