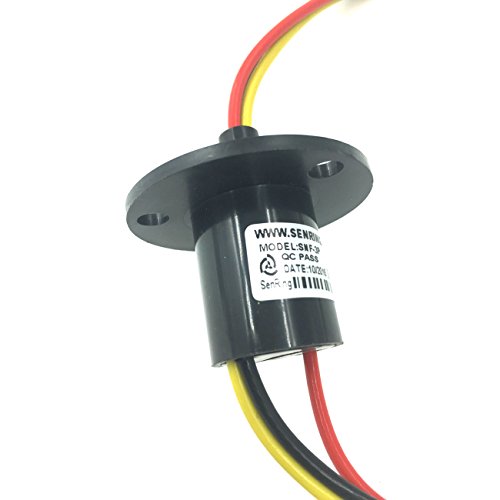

WYPH 250Rpm 3 Wires Mini Slip Ring 15A 240V for Wind Turbine Wind Power Generator

R 1,502

or 4 x payments of R375.50 with Payflex

Availability: Currently in Stock

Delivery: 10-20 working days

WYPH 250Rpm 3 Wires Mini Slip Ring 15A 240V for Wind Turbine Wind Power Generator
- Current: 3 Circuits * 15A
- Voltage: 250 VDC / VAC
- Maximum speed: 250RPM
- Torque: 0.06N.m
Specifications:
Working life: >20 million turns (depending on speed and working environment)
Protection class: IP51
Material: Engineering Plastics
Contact material: Gold plated ring-Gold plated brush
Lead size: 250mm 30# AWG Teflon wire
Insulation resistance: 1000 MÏ‰ @ 500 VDC
Dielectric strength: Between each circuit and all other circuits â‰¥ 500 VAC @ 50Hz;
Electrical noise: â‰¤10mÏ‰

Applications:
CCTV Monitoring System
Electrical test equipment
Medical equipment
Robotics
Stage Lighting Industry

Country	USA
Brand	WYPH
Manufacturer	Shenzhen Weiyapuhua Technology Co.,Ltd
Binding	Electronics
ItemPartNumber	250Rpm 3 Wires Slip Ring
Model	250Rpm 3 Wires Slip Ring
Color	Black
UPCs	889269856265
EANs	0889269856265
ReleaseDate	0000-00-00
