WindyNation Linear Actuator or DC Motor Power Supply + DPDT Wireless Remote Control Switch & Wiring

Sold Out / Out of Stock

Option Currently Selected: Power Supply + Remote No Extra Cables

Variations

WindyNation Linear Actuator or DC Motor Power Supply + DPDT Wireless Remote Control Switch & Wiring

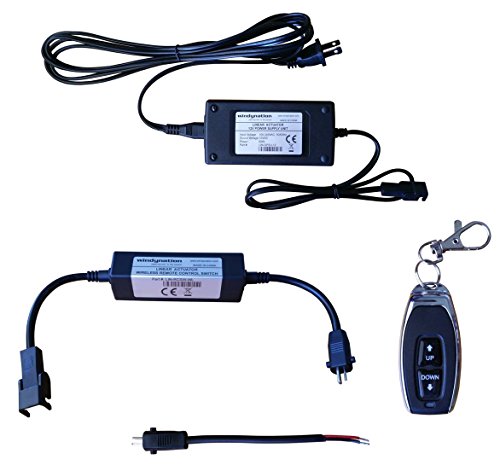

- Includes Power Supply, Remote Control Unit, and Connection Cables (See photo gallery for wiring diagram)
- Can wirelessly control 12 volt DC Motors or linear actuators (5 amps maximum). The remote control is a DPDT switch (Examples: Up-Stop-Down or Clockwise-Off-Counterclockwise)
- Power Supply Specs: AC INPUT RANGE: 100-240 VAC DC OUTOUT: 12 VDC (5 amps maximum) ADDITIONAL INFO: 8ft AC extension cord included and 5ft DC extension cord included
- Remote Specs: POWER RATING: 5 amps REMOTE RANGE: 90ft maximum FREQUENCY: 433.92 Mhz OPERATING CURRENT: 15mA SWITCH TYPE: DPDT ON-OFF-ON
- Simple Installation: The included connectors allow for a quick and simple installation of the power supply and remote receiver.
WindyNation's Linear Actuator DC Motor Control Kits offer a quick, reliable, and professional method for powering, remotely controlling, and wiring DC motor systems (or any system that you want to remotely control with a DPDT switch). Wiring and installing these units is simple using the included quick snap locking connectors and cable. You can select from several kit options.
Country USA
Brand WindyNation
Binding Electronics
ItemPartNumber LIN-MCKA-NPR
Color No Extra Cables
Size Power Supply + Remote
ReleaseDate 0000-00-00
