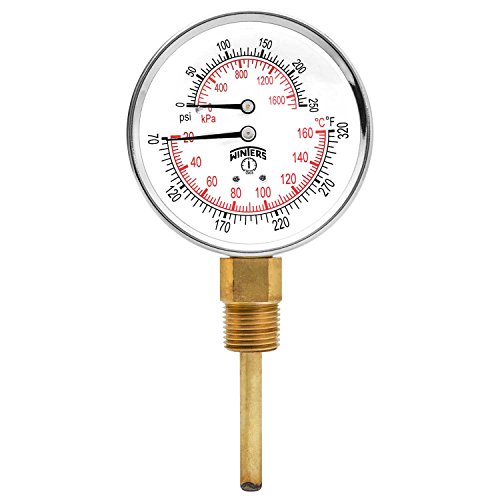

Winters TTD Series Steel Dual Scale Tridicator Thermometer with 2" Stem, 0-250psi/kpa, 3" Dial Display, Â±3-2-3% Accuracy, 1/2" NPT Bottom Mount, 70-320 Deg F/C

Please be aware orders placed now will not arrive in time for Christmas, please check delivery times.

Winters TTD Series Steel Dual Scale Tridicator Thermometer with 2" Stem, 0-250psi/kpa, 3" Dial Display, Â±3-2-3% Accuracy, 1/2" NPT Bottom Mount, 70-320 Deg F/C
- Measures both pressure and temperature on the same dial
- Dial: 3"
- Dual scale
- Brass wetted parts
- 1 Year warranty
Measures both pressure and temperature on the same dial. Dual scale. Bottom connection. Brass wetted parts. 2" Stems. Ranges are compliant to industry standard ASME boiler code section IV. Hot water and steam pressure for boilers. Dial: 3" aluminum, painted white. Case: steel, painted black. Lens: glass. Ring: chrome. Stem: brass. Socket: brass. Tube: brass. Movement: brass and phosphor bronze. Sensing element: bi-metallic coil, bourdon tube. Pointer: aluminum, anodized black. Welding: tin-alloy solder. Pressure limit: 75 percent of full scale range. Ambient temperature: 23 degree fahrenheit to 122 degree fahrenheit. Process temperature: 75 percent of full scale range. Accuracy: +/-3-2-3 percent, +/-3 percent of full scale. Enclosure rating: IP50. Temperature range: 70 degree F to 320 degree F. Pressure range: 0-250psi
Country USA
Binding Misc.
Brand Winters Instruments
EAN 0628311000115
Label Winters
Manufacturer Winters
Model TTD399
MPN TTD399
NumberOfItems 1
PartNumber TTD399
Publisher Winters
Studio Winters
ReleaseDate 0000-00-00
