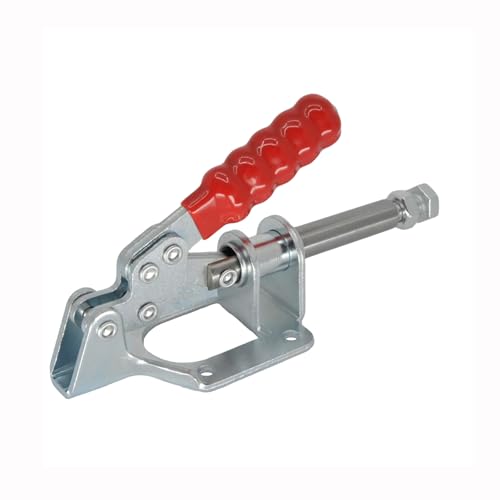

XRPAOWA Hand Tool 302F Toggle Clamp Quick Release Push Pull

XRPAOWA Hand Tool 302F Toggle Clamp Quick Release Push Pull Type 300Lbs Holding Capacity
- Package Included: 1 pcs 302-F quick release push pull toggle clamp
- Holding capacity : 300 lbs / 136 kg; Plastic cover handle for easy, safe and comfortable operation
- Material: Cold-rolled carbon Steel Q235 with Zinc plated coating for corrosion resistance; Oil and Stain resistant red vinyl solid hand grips, complete with adjustable screw M8x30
- Overall Size: 160 x 55 x 85mm/6.3" x 2.2" x 3.3" (LxWxH); Hole Size: 5mm / 0.2"; Hole Center Distance: 42 x 35mm/1.7" x 1.4"(LxW); Screw Thread Size: about 8 x 32mm/0.3" x 1.26"(D*L); Plunger Stroke: 32mm/ 1.26"
- Design: Push Pull Type, allows you to hold workpiece in a vertical position; A rock-solid grip to install on jigs, tool fixtures, or movable bases
Product Description:

Push / Pull Quick-Release Toggle Clamp is a must-have addition to your jig assembly. With its sturdy construction and efficient design, high-performing push/pull clamping action, this power house of a clamp delivers a hold that is versatile in application and resists slippage.
Oil and Stain resistant red vinyl solid hand grips.

Specifications:
Type: GH-302-FM Push / Pull quick release holding toggle clamp
Overall Size: 160 x 55 x 85mm/6.3" x 2.2" x 3.3" (L*W*H);
Hole Size: 5mm/0.2";
Hole Center Distance: 42 x 35mm/1.7" x 1.4"(L*W);
Plunger bolt thread model and size: M8 screw ( 5/16-18 bolt ), 3.2cm / 1.26" inches long
Push rod range ( without clamp bolt ) from end of base to end of push rod: 21.5cm / 8.46" inches
Clamp height, including handle, when clamped: 10cm / 3.94" inches
Total length when clamped ( without clamp bolt ): 14cm / 5.51" inches

Package include: 1pc 302F Toggle Clamp.

Country USA
Brand XRPAOWA
Manufacturer XRPAOWA
Binding Tools & Home Improvement
ItemPartNumber RM10000-6
Model RM10000-6
Color Silver & Red
UPCs 610521512069
EANs 0610521512069
ReleaseDate 0000-00-00

Country	USA
Brand	XRPAOWA
Manufacturer	XRPAOWA
Binding	Tools & Home Improvement
ItemPartNumber	RM10000-6
Model	RM10000-6
Color	Silver & Red
UPCs	610521512069
EANs	0610521512069
ReleaseDate	0000-00-00

XRPAOWA Hand Tool 302F Toggle Clamp Quick Release Push Pull Type 300Lbs Holding Capacity
