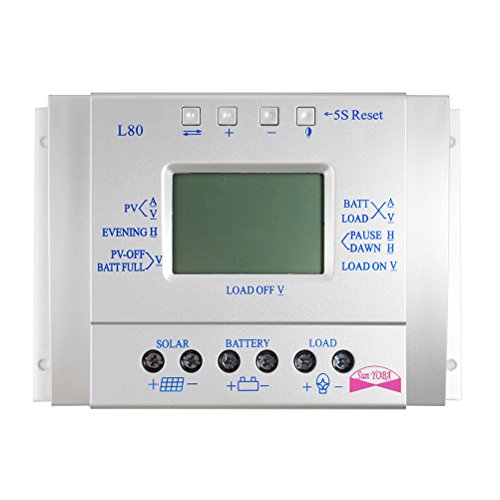

Y-SOLAR 60a 80a Solar Battery Charge Controller LCD 12V 24V

Y-SOLAR 60a 80a Solar Battery Charge Controller LCD 12V 24V Auto with USB with Load Timer and Light Control for Lighting (80A)

Notice: Not True MPPT,there is no large transformer coil inside.

Maximum Power Current: 80A
Installation Lin(mm2): 20mm2
Installaton Line(AWG): 2#(AWG)
Weight: 900g
Peak power of solar cell panel (Max Wp): 1000W
Battery capacity configuration: 800AH
Dimensions: 188*128*61(mm)
Battery float voltage: 13.8V(12V system)/27.6V(24V system)
Battery (under voltage) protection: 10.6V(12V system)/21.2V(24V system)
Battery(under voltage)recovery voltage: 12.6V(12V system)/25.2V(24V system)
System load loss:< =13mA: Loop Buck;< =100mV
Operation Temperature :-10Â°C~60Â°C: Storage Temperature :-30Â°C~-70Â°C
Operation Temperature :< =90%,No condensation: Temperature compensation :-4mV/Cell/Â°C
Maximum open circuit voltage of the solar panel: 18V~24V(12V system) 36V~48V(24V system)
Solar Panel maximum open circuit voltage: < =48V

This is a three-time controller into the evening(evening)working time,
an interval of rest or pause time,Dawn working time(morning light function),
the user can according to their needs,set a different time.
A:time(evening working)
B:time(Pause working)
C:time(dawn working)
This is a compatible MPPT charge controller PWM intelligent/efficient/energy saving,
he not only has efficient MPPT controller charging function to automatically track the maximum power point,
10%-30% higher than the ordinary controller chargingefficiency,
also has standby energy saving,more than 30% energy than ordinary controller,the standby power consumption of only 10mA-15mA.

Packing Including:
1 x 80A Solar Controller
1 x Temperature Sensor
1 x English User Manual
Country USA
EAN 6083351273778
ReleaseDate 0000-00-00

Country	USA
EAN	6083351273778
ReleaseDate	0000-00-00
