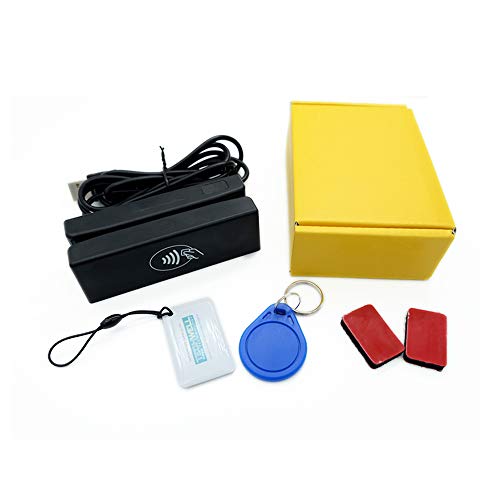

ZCS100-RF 2-in-1 Magstripe reader + RFID NFC contactless card

ZCS100-RF 2-in-1 Magstripe reader + RFID NFC contactless card reader writer
- ZCS100-RF is Programmable 2-in-1 Magstripe card reader + NFC contactless card reader writer, Only For ADPU Professional People Writing CPU contactless cards. Easy to read and write RFID Mifare one card
- Support ISO14443 type RFID card (Mifare one card), Frequency 13.56Mhz
- PCSC USB interface, no need driver, easy to use
- Free SDK, device can be developed.
- Support OEM and facotry customization
Manufacturer------Â SZZCS

ZCS100-RF Â Magnetic Stripe Reader + EMV IC chip CardÂ Reader&Writer
Attention
The device can not use directly without App, we will provide free SDK and technical support, but Application need to be developed by customers themselves.
Bulk quantity order and OEM will be welcomed.

Introduction
ZCS100 - RF is a magnetic card and RFID card 2 in 1 reader , you can read the magnetic card and read&write RFID card.Through the USB interface connection with the PC machine and related equipment.
It is widely used in industry, commerce, telecommunications, taxation, banking, insurance, medical and all kinds of charges, storage, query management system.

Technical Data
Electrical
Power suplly: Via USB port
CurrentL: 45~65mA

Interconnection
Interface: USB2.0ã€USB-OTG(Android 3.1 above)

Mechanical
Material: ABS
Dimensions: 100mm(L)X34mm(W)X30mm(H)
Weight: 90g
Color: Black

Environment
Operation temp: -20â„ƒ ~ 55 â„ƒ
Operation humidity: 10%~90% relative humidity
Storage temp: -30â„ƒ~70â„ƒ
Storage humidity: 10%~90% relative humidity

Magnetic card
Read card: 1/2/3 tracks
Swipe: Double direction
Head life: Approx 500,000 passes
Parity and LRC checking: Built-in, audible and LED good read and error indicator
Cards supported: ISO 7811,AMMVA,CADMV

RFID card
Operating Frequency: 13.56 MHz
Smart Card Interface: ISO14443-A, Mifare
Sensing Distance: 0-5cm
Programmable sound: ON or OFF
Cards supported: SO 14443A,Mifare One S50,Mifare One S70,Mifare One Mini,Mifare Ultra Light,Desfire,Mifare Plus

Operation
Operating Systems: Win7, Win 2008 ,Vista, Win 2003, Win 2000, XP, Linux

Packing List:
ZCS100-IC device* 1
SDK CD* 1
