Industrial-style monochrome direct thermal printer with metal frame, 10/100 Ethernet connection, and larger ribbon capacity than the Zebra ZT220 series prints 4" wide labels at 6" per second and 203 dpi (8 dots/mm)
Element energy equalizer (E3) and side-loading metal print mechanism with head open lock help to increase work efficiency
LCD graphical interface facilitates use and navigation
128 MB Flash and 128 MB RAM for high throughput
Transmissive and reflective media sensors for different label types

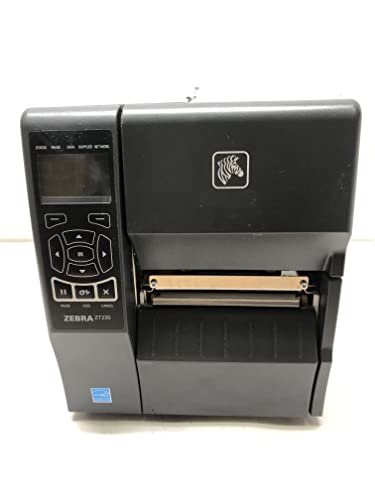

The Zebra ZT230 Industrial Direct Thermal Tabletop Label Printer with metal frame, 10/100 Ethernet connection, and larger ribbon capacity than the Zebra ZT220 prints 4" wide labels at 6" per second and 203 dpi (8 dots/mm). An element energy equalizer (E3) and side-loading metal print mechanism with head open lock help to increase work efficiency. It has an LCD graphical user interface for reading and navigation and 128 MB Flash and 128 MB RAM for high throughput. Media sensors are transmissive and reflective to accommodate different label types including continuous, die-cut, notch, and black mark. Additional connection options include serial and USB 2.0.
10.9 x 9.5 x 17 inches/277 x 242 x 432 mm (H x W x D)
Print width x length
Width: 4.09"/104 mm width, Length: 157"/3,988 mm
6"/152 mm per second
Label and liner width
Minimum: 0.75"/19.4 mm, Maximum: 4.50"/114 mm
Maximum non-continuous label length
Maximum Media Roll Size
8.0"/203 mm OD on a 3"/76 mm ID core, 6.0"/152 mm OD on a 1"/25 mm ID core
0.003"/0.076 mm to 0.010"/0.25 mm
Ribbon outside diameter
300 m: 2.7"/68.6 mm; 450 m: 3.2"/81.3 mm
Standard ribbon length
984'/300 m or 1476'/450 m
1.57"/40 mm to 4.33"/110 mm
IEC 60950, EN 55022 Class B, EN55024, EN 61000-3-2, EN 61000-3-3
*H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.
Thermal printers can be used to print receipts, labels, tags, and other similarly sized media at point of sale (POS) locations. Direct thermal printers and thermal transfer printers use heat instead of ink to print on coated thermal media. A parallel, serial, or USB port allows a receipt printer to be connected to a computer. An Ethernet port or wireless capabilities may enable it to be connected to a computer network. Thermal printers can be used at retail checkout counters and other points of sale.
Zebra Technologies manufactures barcode, receipt, kiosk, and radio-frequency identification (RFID) printers and accessories. The company, founded in 1969, is headquartered in Lincolnshire, IL.
What's in the Box?
(1) thermal printer
(1) North American power cord
Our professional technicians do a full diagnostic rebuild on unit. The fuser is re-built and installed, Rollers are replaced, Pads replaced, we give the device a thorough cleaning inside and out, and any residue removed.3 MONTHS WARRANTY
Most Helpful Customer Reviews
Does not ship with the required kits for ribbon use. A Gear Kit and the Ribbon Holding Kit are required to be purchased. Expect to have duplicate parts in the kits also. There are two different gear kits based off the Serial Number. About another $150 later you can use ribbbon for permanent label printing. Works as intended after installing the extra parts. Inside there is pictures of the installed components but they are not there.
not all the parts were in the printer and am unable to return it. We purchased it for a business and didnt get to it right away .. now we are out of return policy. If you get it - check it out throughly the day it is recieved!
The printer came in with out some parts. We returned it the first time and the second time happened the same thing. Unbelievable !!
