Zodiac Mini DisplayPort Thunderbolt 2 to HDMI/DVI/VGA Male to

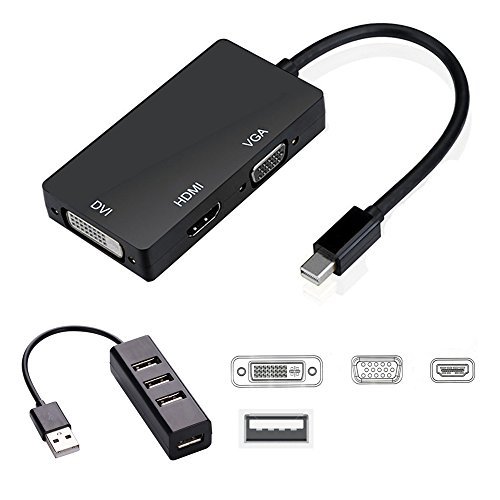

Zodiac Mini DisplayPort Thunderbolt 2 to HDMI/DVI/VGA Male to Female Adapter Convertor and 4 x USB 2.0 Hub Combo for Macbook,Microsoft Surface Pro 2 Pro 3 Pro 4 and Book, Lenovo x1 (Black)
- Lightweight and portable adapter for connecting a Mini DisplayPort (Mini DP or mDP)/Thunderbolt 2 port compatible computer to an HDTV, monitor, or projector with HDMI; A separate HDMI cable (Not incude) is required
- [4 x USB 2.0 HUB]: USB connector, NOT mini DP connector. No Driver and Power Required. You can connect it with Mouse/Keyboard/Printer/DVD Player/Wireless device/USB Flash Drive/Card Reader/Ethernet adapter/Mini Hard drive and storage.Hub must not exceed a combined current of 5 volts 900 mAh. It Can't charge a iPad,just sync
- Compatible with Apple MacBook, MacBook Pro, MacBook Air, iMac, Mac mini, Mac Pro; Microsoft Surface Pro 4, Pro 3, Pro 2, Surfacebook (NOT Surface for Windows RT); Lenovo ThinkPad X1 Carbon, X230/X240s, L540, T540p, W540, Helix; Dell XPS 13/14/15/17, Latitude E7240/E7440, Precision M3800; Alienware 14/17/18; Acer Aspire R7/S7/V5/V7; Intel NUC; Asus Zenbook; HP Envy 14/17; Google Chromebook Pixel; Cyberpower Zeusbook Edge X6; Toshiba Satellite Pro S500, Tecra M11/A11
- Transmits both audio and video from computer or tablet to HDTV display; Supports video resolutions up to 1920 x 1200 and 1080p (Full HD) .This Adapter can only pass signal from Mini DisplayPort to HDMI/DVI/VGA port. It's not a bi-directional cable. When connect to monitor ,audio will not pass through the adapter to the HDMI/VGA/DVI monitor (a speaker is needed to get audio out );When connect to TV, only HDMI port can have audio out , VGA and DVI ports need
Mini DisplayPort Thunderbolt to HDMI/DVI/VGA Adapter How to use:
You can only plug a port among 3 output ports at one time, when you want to use the DVI output, you just need to connect the DVI devices with a DVI cable. And when you want to use the HDMI output, you just need to connect the HDMI devices with a HDMI cable. When you want to use the VGA output, you just need yo connect the VGA devices with a VGA cable.

Note:
1.Support Mini Display Port 1.1a Dual-mode input.Note:Mini Display Port is NOT compatible with Macs (before 2008) that have Mini-DVI. Please check your port before purchase
2.The HDMI can support audio output for iMac (Late 2009) and Mac Book Pro (Mid 2010),Macs made before 2010 are NOT able to output audio over Mini DisplayPort. Not compatible with 2009 Early Macbook. More info and then check the Model Identifier field in Hardware Overview
3.Automatic detect the display by plugging and unplugging it.Support HDMI/DVI/VGA output with the max resolution of 1920x1080p@60Hz, 225MHz/2.25Gbps per channel (6.75Gbps all channel), 12bit per channel (36bit all channel) deep color
4.Only supports 1 display output at a time A separate HDMI/DVI/VGA cable is required, not included, Not compatible with Thunderbolt 3 (USB-C) ports

Specification:

Output
Video:HDMI/DVI/VGA
Input:
Mini Display Port Male 20pin
Output: HDMI Female Type A 19pin
Connector:DVI Female (24+1) VGA Female 15Pin
Vertical Frequency Range:50/60Hz
Video Amplifier Bandwidth:2.25Gbps/225MHz HDMI/DVI/VGA:480i/480p,576p,720p,1080i/1080p
External Power Supply:No external power needed
Power consumption (Max):700mW

Warranty Policy:
45 days money-back and 12-month exchange!
Country USA
Binding Electronics
Brand Zodiac
Color Black
Label Zodiac
Manufacturer Zodiac
Model MINIDP4500
MPN DPW24
PartNumber DPW24
Publisher Zodiac
Studio Zodiac
ReleaseDate 0000-00-00

Country	USA
Binding	Electronics
Brand	Zodiac
Color	Black
Label	Zodiac
Manufacturer	Zodiac
Model	MINIDP4500
MPN	DPW24
PartNumber	DPW24
Publisher	Zodiac
Studio	Zodiac
ReleaseDate	0000-00-00

Zodiac Mini DisplayPort Thunderbolt 2 to HDMI/DVI/VGA Male to Female Adapter Convertor and 4 x USB 2.0 Hub Combo for Macbook,Microsoft Surface Pro 2 Pro 3 Pro 4 and Book, Lenovo x1 (Black)
