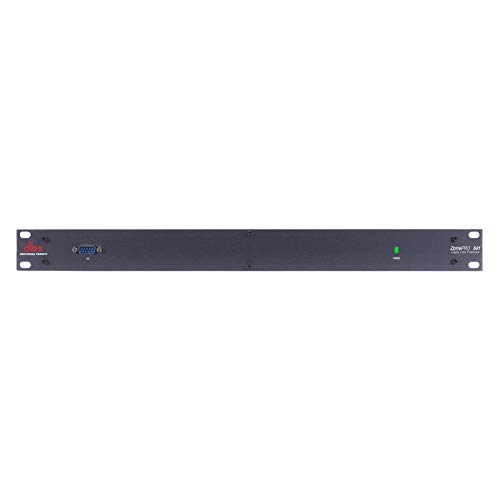

dbx ZonePRO 641 6x4 Digital Zone Processor

dbx ZonePRO 641 6x4 Digital Zone Processor
- 6 total inputs: four switchable EUROPORT mic/line inputs, two unbalanced, mono-summed RCA source input pairs
- 4 outputs: four electronically balanced, RF filtered Euroblock outputs
- Frequency response: 20Hz - 20kHz, +/- 0. 5dB
- 6 mic preamps with 15V phantom power
- 29W power consumption
The dbx ZonePRO 641M offers fixed I/O, pre-configured architecture, configurable insert processing and optional duplication of audio channels to another ZonePRO device via a link bus. The 641M features a total of six inputs and four outputs. Inputs include four balanced mic/line switchable terminal block inputs and two mono-summed pairs of unbalanced RCA inputs. Hardware-controlled microphone gain allows adjustment of microphone gain per channel. The 641M device has a pre-configured architecture with input processing, a central Matrix and output processing. Two input insert positions and one output insert position allow channel-specific insert processing to be configured. Auto warmth, A psychoacoustic function that maintains full frequency bandwidth even when the signal level has dropped, is permanently available on each output zone. A link bus allows duplication of the first six audio channels to another ZonePRO device in applications where additional output zones are required. The front panel of the 641M features a power status LED, a network traffic LED, and an RS-232 control port. Additional system control is offered in the form of optional zone controllers. This collection of hardware wall-controllers represents a series of simple, elegant user interfaces for functions such as volume, source and preset control. Zonepro Designer-the configuration, control and monitoring software for the ZonePRO family of devices-offers control of the ZonePRO 641M via Ethernet or RS-232. The configuration Wizard within ZonePRO designer guides users through the step-by-step configuration process of the 641M.

Country	USA
Brand	dbx
Manufacturer	Harman Music Group
Binding	Tools & Home Improvement
PartNumber	DBX641
Model	DBX641V
Warranty	See manufacturer's website for details
Height	1.75
Length	5.75
Weight	6.8
Width	19
Size	No LCD:2 RCA + 2 Euroblock Inputs
NumberOfItems	1
ReleaseDate	0000-00-00

dbx ZonePRO 641 6x4 Digital Zone Processor
