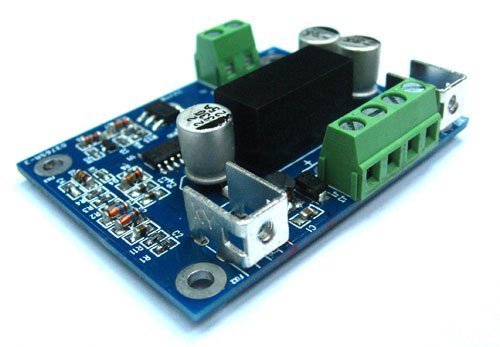

miniDC 12V DC to DC Isolator for miniDSP 2x4 and 2x4 HD

miniDC 12V DC to DC Isolator for miniDSP 2x4 and 2x4 HD

miniDSP miniDC 12V DC to DC Isolator Noise Filter Regulator Power on/off delay Â· The miniDC isolator provides precision voltage regulation and noise filtering with power on/off delay. Â· Based on a DC-DC isolated converter and delay circuit, it allows you to turn your miniDSP (or other processor) on and off in the correct order. Â· This board is strongly recommended for car audio applications, allowing complete isolation of automotive alternator noise. Â· Compatible with miniDSP 2x4, 2x4 HDand 2x4 Balanced. The diagram illustrates the timing relationship between Vin, Vout, REMin and REM out pins. When the remote input (REM in) goes high (above 5V), the device will the isolated 12V output immediately (no delay). The remote output (REM OUT) is delayed by 3 seconds to allow for the DSP to settle before amplifiers are turned on. Once the remote input (REM in) signal goes low, the remote output goes immediately low to turn the amplifier off first. The isolated 12VDC out will be delayed to turn the miniDSP last. Technical Specifications - 12V DC to DC isolation compatible with miniDSP unbalanced and balanced units - Wide 10-18V input range - 1500V isolation - Short circuit protection- Delayed +12V remote out NOTE: This product is not compatible with the miniDSP 2x8/8x8 platforms since it does not have enough power.
Country USA
Brand miniDSP
Manufacturer miniDSP
Binding Electronics
ItemPartNumber miniDC Isolator
UPCs 860566000391
EANs 0860566000391
ReleaseDate 0000-00-00

Country	USA
Brand	miniDSP
Manufacturer	miniDSP
Binding	Electronics
ItemPartNumber	miniDC Isolator
UPCs	860566000391
EANs	0860566000391
ReleaseDate	0000-00-00
