smartfire info. HiKey 960 Single Board Computer Octa core -

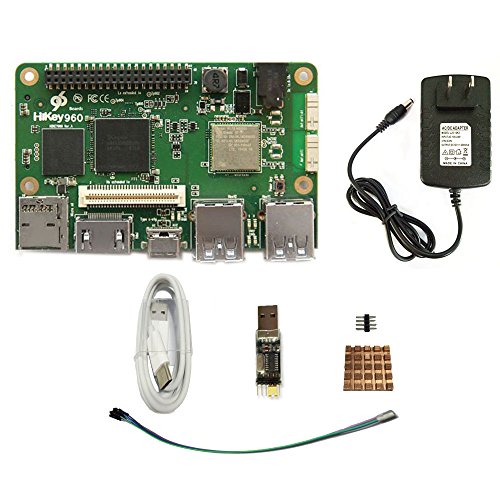

smartfire info. HiKey 960 Single Board Computer Octa core - 96Boards Reference Development Platform (4GB LPDDR4 & 32GB eMMC) Running with AOSP & Linux
- CPU: HiSilicon Kirin 960 Octa core (4*Cortex A73 (up to 2.3GHz) + 4*Cortex A53), GPU ARM Mali G71 MP8, up to 900MHz + WiFi (2.4- and 5-GHz dual band with two antennas) Bluetooh 4.1,2 x USB 3.0 type A (host mode only) + 1 x USB 2.0 type C OTG,
- OS Support: AOSP/LINUX + RAM :4GB LPDDR4 SDRAM @ 1866MHz, 32GB UFS flash storage MicroSD card slot (SD3.0, SDR104, up to 2TB), Recommend a 12V@2A adapter with a DC plug which has a 4.75mm outer diameter and 1.7mm center pin with standard center-positive (EIAJ-3 Compliant)
- Audio: HDMI output 1 x Tensilica HiFi3.0 DSP audio subsystem + Video: 4K @30fps H.265/H264 video hardware encoder H265\HEVC MP/High Tier, Main/High Tier, H.264 BP/MP/HP, MPEG 1/2/4, VC-1, VP6/8, RV8/9/10, DIVX, H265 up to 4K @60fps video hardware decoder
- Excellent performance and power efficiency enables developers to explore a realm of new applications in virtual reality, computer vision, machine learning, and artificial intelligence using a validated, compact, and cost efficient platform package.
- Built on top of industry computing standards such as Google's Android Open Source Project, Khronos OpenCL 2.0. Make innovation easy and prototype the next generation of applications with this board today!
The Hikey 960 board has excellent performance and power efficiency.

Features:

PU: HiSilicon Kirin 960 (4*Cortex A73 (up to 2.3GHz) + 4*Cortex A53)

GPU: ARM Mali G71 MP8, up to 900MHz

RAM: 4GB LPDDR4 SDRAM @ 1866MHz

Storage: 32GB UFS flash storage Â MicroSD card slot (SD3.0, SDR104, up to 2TB)

Wireless: WiFi (2.4- and 5-GHz dual band with two antennas) Bluetooh 4.1

Video: 4K @30fps H.265/H264 video hardware encoder

Audio: HDMI output 1 x Tensilica HiFi3.0 DSP audio subsystem

Camera: 1 x Â 4-lane MIPI CSI ,1 x Â 2-lane MIPI CSI

LED: 1 x WiFi activity LED (Yellow),1 x BT activity LED (Blue),4 x User LEDs (Green)

Sizes: 85mm x 55mm

OS Support: AOSP/LINUX

Â

Technical Support:

WIKI: http://wiki.lemaker.org/HiKey960

Getting Start: https: //github.com/96boards/documentation/tree/master/ConsumerEdition/HiKey960

HiKey 960 Schematic: http://www.lemaker.org/product-hikeysecond-download-62.html

Forum: http://forum.lemaker.org/

https://discuss.96boards.org/c/products/hikey960/

Â

Technical Contact: Smartfire@ smartfire.cn

Distribution: monica@ smartfire.cn Â Skype: monica@ smartfire.cn

Country	USA
Binding	Personal Computers
Brand	smartfire info.
EAN	0767520665095
IsAdultProduct
Label	smartfire info.
Manufacturer	smartfire info.
MPN	HiKey 960
OperatingSystem	Android
PartNumber	HiKey 960
Publisher	smartfire info.
Studio	smartfire info.
ReleaseDate	0000-00-00

smartfire info. HiKey 960 Single Board Computer Octa core - 96Boards Reference Development Platform (4GB LPDDR4 & 32GB eMMC) Running with AOSP & Linux
