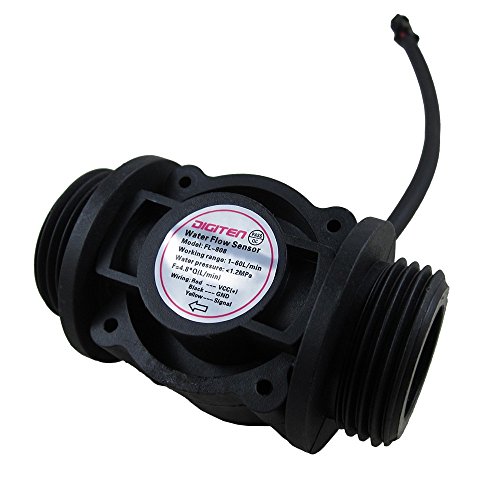

DIGITEN G1" Water Flow Hall Effect Sensor Switch Flow Meter Flowmeter Counter 1-60L/min

DIGITEN G1" Water Flow Hall Effect Sensor Switch Flow Meter Flowmeter Counter 1-60L/min
- Flow range:1-60L/min, Sensor: Hall effect.
- Allow compression:Water pressure 1.75 Mpa below
- Working voltage range:DC 5-18 V
- Output Waveform:Square Wave,output pulse signal.
- Work for Android and PI system.
Waterproof,Heat resistance,pressure resistance,cold resistance.
Easy to install.
Outer diameter: about 1.28inch
Frequency: F=4.8 * Q (L / Min) error:2% voltage :3.5-24VDC, current can not exceed 10mA, 450 output pulses/liters, F=onstant * units of flow (L / min) * time (seconds).
Flow range:1-60L/min
Maximum current:15 mA(DC 5V)
Working voltage range:DC 5-24 V
Load capacity:10 mA(DC 5V)
Operating Temp:0-80â„ƒ,Operating humidity:35%-90%RH
Allow compression:Water pressure 1.75 Mpa below
Insulation resistance:>100M OHM
Storage Temperature:-25Â¡Â«+80Â¡Ã¦
Storage humidity:25%Â¡Â«95%RH
Output Waveform:Square Wave,output pulse singal.
ROHS Compliant.
Cable length:15cm.
Package includes

Flowmeter x 1

Note:The thread is BSP, if used for NPT, need thread seal tape.
Country USA
Brand DIGITEN
Manufacturer DIGITEN
ItemPartNumber FL-808
UPCs 713458679482
EANs 0713458679482
ReleaseDate 0000-00-00
