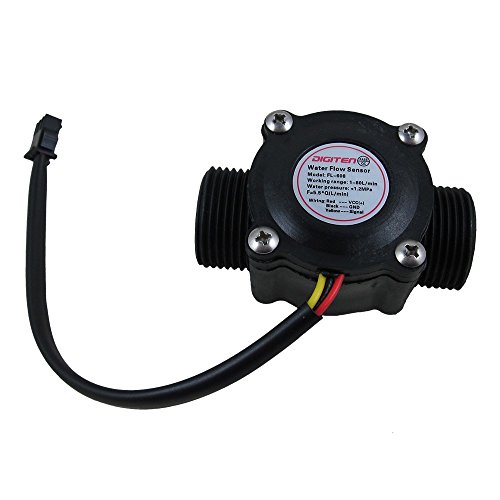

  2. DIGITEN G3/4" Water Flow Hall Sensor Switch Flow Meter Flowmeter Counter 1-60L/min

    [B00VKAT9VA]
    Delivery: 10-20 Working Days
    Price R404.00

     pinterest
Product Description

  • Flow range:1-60L/min
  • Allow compression:Water pressure 1.75 Mpa below
  • Working voltage range:DC 5-18 V
  • Output Waveform:Square Wave,output pulse signal.
  • Sensor:Hall effect
Additional Information

Waterproof,Heat resistance,pressure resistance,cold resistance.
Easy to install.
Frequency: F=5.5 * Q (L / Min), error:2% voltage :3.5-24VDC, current can not exceed 10mA, 330 pulses/liter, F=onstant * units of flow (L / min) * time (seconds).
Flow range:1-60L/min
Maximum current:15 mA(DC 5V)
Working voltage range:DC 5-24 V
Load capacity:≤10 mA(DC 5V)
Operating Temp:≤80℃,Operating humidity:35%¡«90%RH
Allow compression:Water pressure 1.75 Mpa below
Insulation resistance:>100M OHM
Storage Temperature:-25℃~+80℃
Storage humidity:25%~95%RH
Output Waveform:Square Wave,output pulse singal.
ROHS Compliant.
Cable length:15cm.
Packaging include

Flowmeter x 1
