Dwyer® Filter Static Pressure Monitoring Kit, A-605

Dwyer® Filter Static Pressure Monitoring Kit, A-605
- Service: DPGAB: Air and compatible gases;
- Accuracy: ±0.5% F.S. (includes linearity, hysteresis, repeatability).
- Pressure Limits: 2X pressure range. Vacuum range max. pressure is 30 psig.
- Process Connections: 1/4" male NPT.
- Power Requirements: 9 V alkaline battery, included, user replaceable.
The Dwyer A-605 air filter kit enables any Dwyer Series 2000 Magnehelic differential pressure gauge to be used an air filter gauge. An air filter gauge measures air pressure differentials, enabling the operator to determine when a filter is in need of replacement or repair. The kit includes an aluminum surface-mounting bracket, aluminum tubing, two static pressure tips, two molded plastic vent valves, and mounting hardware.
Dwyer Instruments manufactures measurement and control instruments, including pressure gauges, flow meters, level instrumentation, temperature instrumentation, and air quality monitors. The company, founded in 1931, is headquartered in Michigan City, IN.

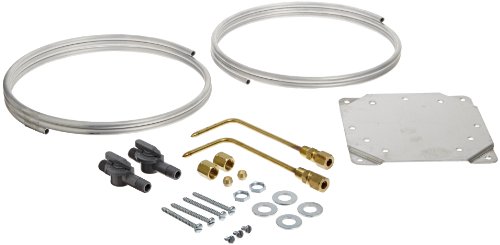

What's in the Box?
- Aluminum surface mounting bracket
- (2) 5'/1.5m lengths of 1/4" aluminum tubing
- (2) static pressure tips
- (2) molded plastic vent valves
- Mounting hardware
Country USA
Brand Dwyer
Manufacturer Dwyer Instruments
Binding Misc.
ItemPartNumber A-605
Model A-605
UnitCount 1
UPCs 696335144528
EANs 0696335144528
ReleaseDate 0000-00-00
