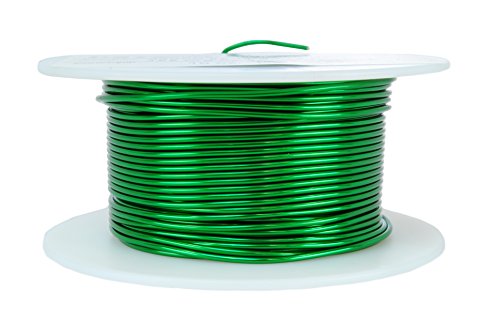

TEMCo 20 AWG Copper Magnet Wire - 8 oz 157 ft 155°C Magnetic Coil Green
Product ID: B00LV924F8
Condition: New
Available in other options.
Sold Out
Product Description
TEMCo 20 AWG Copper Magnet Wire - 8 oz 157 ft 155°C Magnetic Coil Green
- Average Wire Diameter (in.): 0.0346 (with insulation), 0.032 (no insulation)
- Double (Heavy) Build enamel, Polyurethane base coat, Polyamide overcoat.
- Shape: Solid Round Copper (99.9% pure). NOTE: Both ends of wire are accessible.
- Approvals: NEMA MW 80-C, IEC Designation (60317-21), UL Recognized (File: E32638)
- Applications include but not limited to: Appliance motors, relays, timer and clock coils, encapsulated coils, arts & crafts.
Soderon? combines the magnet wire insulation characteristics of polyurethane with the advantages of a polyamide (nylon) topcoat. With the nylon, Soderon? is still readily solderable, yet the solvent resistance and thermal stability of the insulation is excellent. In addition, the nylon improves windability and tolerates more severe winding operations. Soderon? is an excellent choice for automatic winding machines.
Technical Specifications
Country
USA
Manufacturer
TEMCo Industrial
PartNumber
MW0262
Color
8 oz
Weight
0.5
Size
20 AWG
NumberOfItems
1
