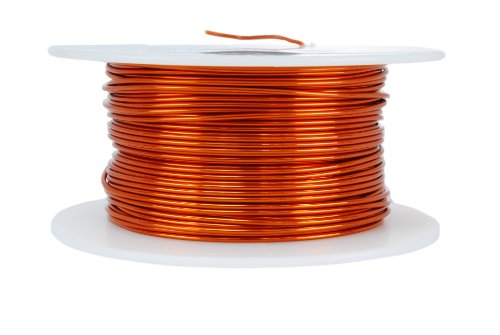

TEMCo 20 AWG Copper Magnet Wire - 8 oz 157 ft 200°C Magnetic Coil Winding

Product ID: B00LV90G9Y Condition: New

Available in other options.

View variations

Sold Out

Product Description

TEMCo 20 AWG Copper Magnet Wire - 8 oz 157 ft 200°C Magnetic Coil Winding

Average Wire Diameter (in.): 0.0346 (with insulation), 0.032 (no insulation)
Double (Heavy) Build enamel, Polyester base coat, Polyamideimide overcoat.
Shape: Solid Round Copper (99.9% pure). NOTE: Both ends of wire are accessible.
Approvals: NEMA MW 35-C, IEC (60317-13, 60317-25, 60317-29), UL Recognized (File: E32638)
Applications include but not limited to: Transformers, Motors, Inductors, Output Coils, Ham Radio Coils, Antennas, Generators, Tesla Coils, Solenoids, Electro-magnetics, Tattoo Machines, Hook-up Wiring, Twist Ties, Arts & Crafts

GP/MR-200? has a multi-purpose film insulation which includes a modified polyester basecoat and a polyamideimide topcoat. This combination provides moisture resistance, physical toughness, excellent dielectric properties, and superior chemical resistance to common solvents and refrigerants. Thermal properties of over 200Ã¸C qualify it for severe thermal overload applications. Compared to nylon overcoated polyester, it is superior in regards to physical moisture, chemical, and thermal resistance. GP/MR-200? is suitable for many uses including: open motor, high moisture applications, and hermetic applications. / Volts @ room temp (typical):: 12200 / Volts @ room temp (required): 5700 / Volts @ rated temp (typical) 10300 / Volts @ rated temp (required): 4275
